COMPACT frame hinge 107°

chevron_left Back

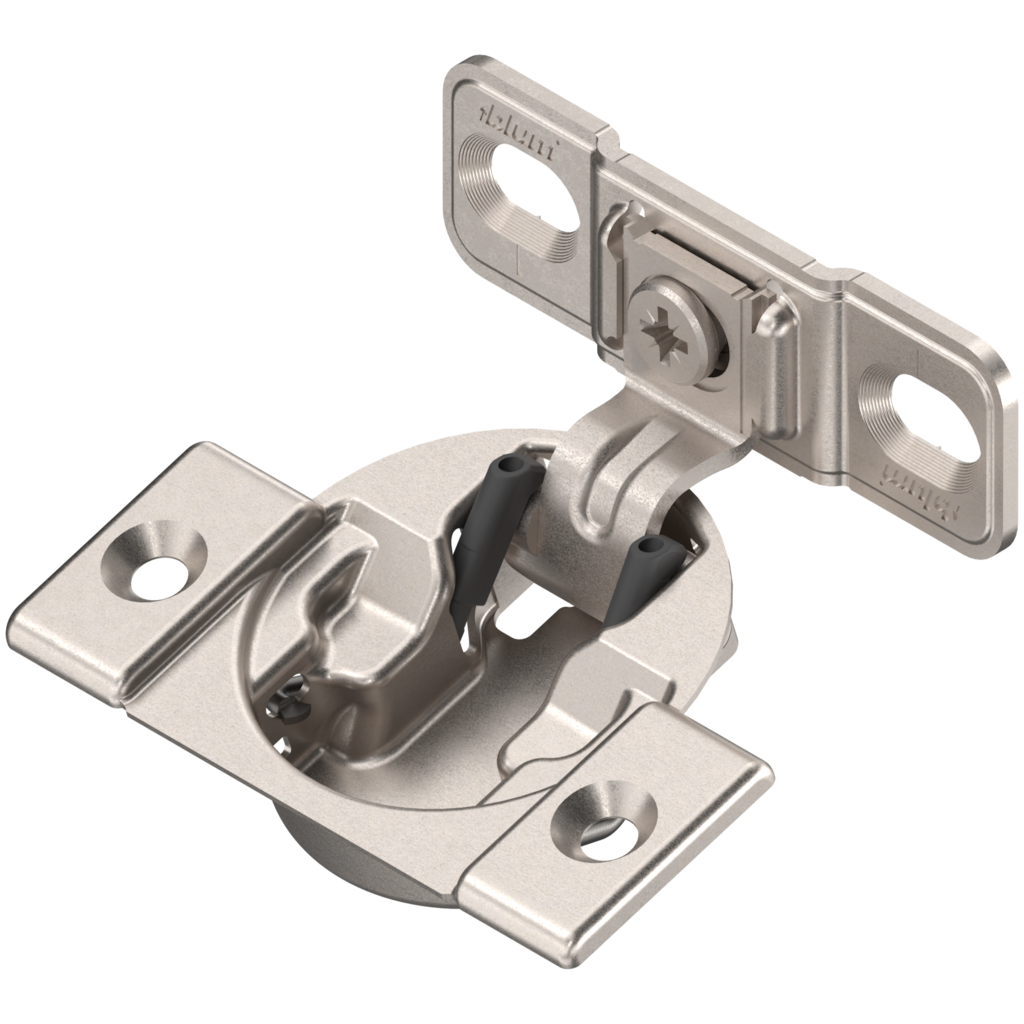

COMPACT frame hinge 107°
COMPACT hinge, 1 3/8" or larger", 107°, with spring, mounting plate: for screwing on, boss: screw-on, Nickel plated
Ident no: 01669290
Part no.: 38B355AF22MB+138F01B NI
Box qty: 250 pcs
  • type: frame hinge
  • application: overlay
  • colour/surface: nickel plated
  • boss fixing: for screwing on
  • closing mechanism: with spring
  • hinge system: COMPACT
  • opening angle: 107 °

COMPACT hinge, 1 3/8" or larger", 107°, with spring, mounting plate: for screwing on, boss: screw-on, Nickel plated

Ident no: 01669290 Part no.: 38B355AF22MB+138F01B NI Box qty: 250 pcs
  • type: frame hinge
  • application: overlay
  • colour/surface: nickel plated
  • boss fixing: for screwing on
  • closing mechanism: with spring
  • hinge system: COMPACT
  • opening angle: 107 °
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

  • check_circle_outline With pre-assembled mounting plate so that you can save time and benefit from added convenience from ordering right through to installation
  • check_circle_outline With integrated spring to help the door to close and keep it closed
  • check_circle_outline With 2-dimensional front adjustment (side, height)
The COMPACT hinge is a concealed hinge for cabinets with a frame construction. It is a single-piece system including mounting plate and is ideal for front overlays from 35 mm. It is mounted at the front on the frame/cabinet front edge.
description Technical data expand_more

Technical data

type
frame hinge
application
overlay
colour/surface
nickel plated
boss fixing
for screwing on
closing mechanism
with spring
