COMPACT opening angle stop 86°

chevron_left Back

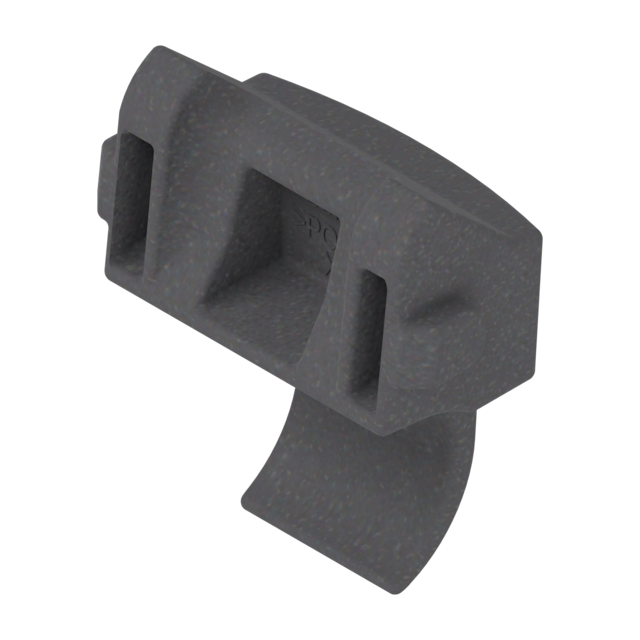

COMPACT opening angle stop 86°
86° Opening angle stop for COMPACT BLUMOTION / COMPACT CLIP, deep grey
Ident no: 08032493
Part no.: 38C315B3.1BEGR V250 TGR
Box qty: 250 pcs
  • limiting dimension: 86°

86° Opening angle stop for COMPACT BLUMOTION / COMPACT CLIP, deep grey

Ident no: 08032493 Part no.: 38C315B3.1BEGR V250 TGR Box qty: 250 pcs
  • limiting dimension: 86°
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Der Öffnungswinkelbegrenzer kontrolliert den maximalen Öffnungswinkel der Front. Er dient dazu, Kollisionen mit anderen Möbelteilen oder Wänden zu verhindern und einen sicheren Öffnungsvorgang zu gewährleisten.
description Technical data expand_more

Technical data

type
opening angle stop
lift system
COMPACT
limiting dimension
86°
colour/surface
dark grey
fixing method
for sliding in
