COMPACT/AVENTOS HK-XS frame hinge 107°

chevron_left Back

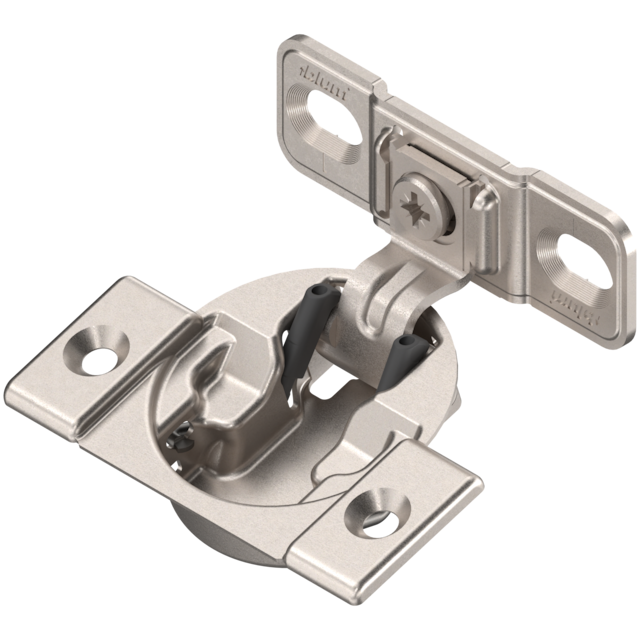

COMPACT/AVENTOS HK-XS frame hinge 107°
COMPACT/AVENTOS HK-XS frame hinge 107°
Ident no: 01669290
Part no.: 38B355AF22MB+138F01B NI
Box qty: 250 pcs
  • type: frame hinge
  • opening angle: 107 °
COMPACT hinge, 1 3/8" or larger", 107°, with spring, mounting plate: for screwing on, boss: screw-on, Nickel plated
Ident no: 01669290 Part no.: 38B355AF22MB+138F01B NI Box qty: 250 pcs
  • type: frame hinge
  • opening angle: 107 °
error_outline

Please log in to see prices and availability.

  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

The COMPACT hinge is a concealed hinge for cabinets with a frame construction. It is a single-piece system including mounting plate and is ideal for front overlays from 35 mm. It is mounted at the front on the frame/cabinet front edge.
description Technical data expand_more

Technical data

type
frame hinge
boss fixing
for screwing on
closing mechanism
with spring
colour/surface
nickel plated
integrated soft-close mechanism
no
