COMPACT/AVENTOS HK-XS frame hinge 107°

chevron_left Back

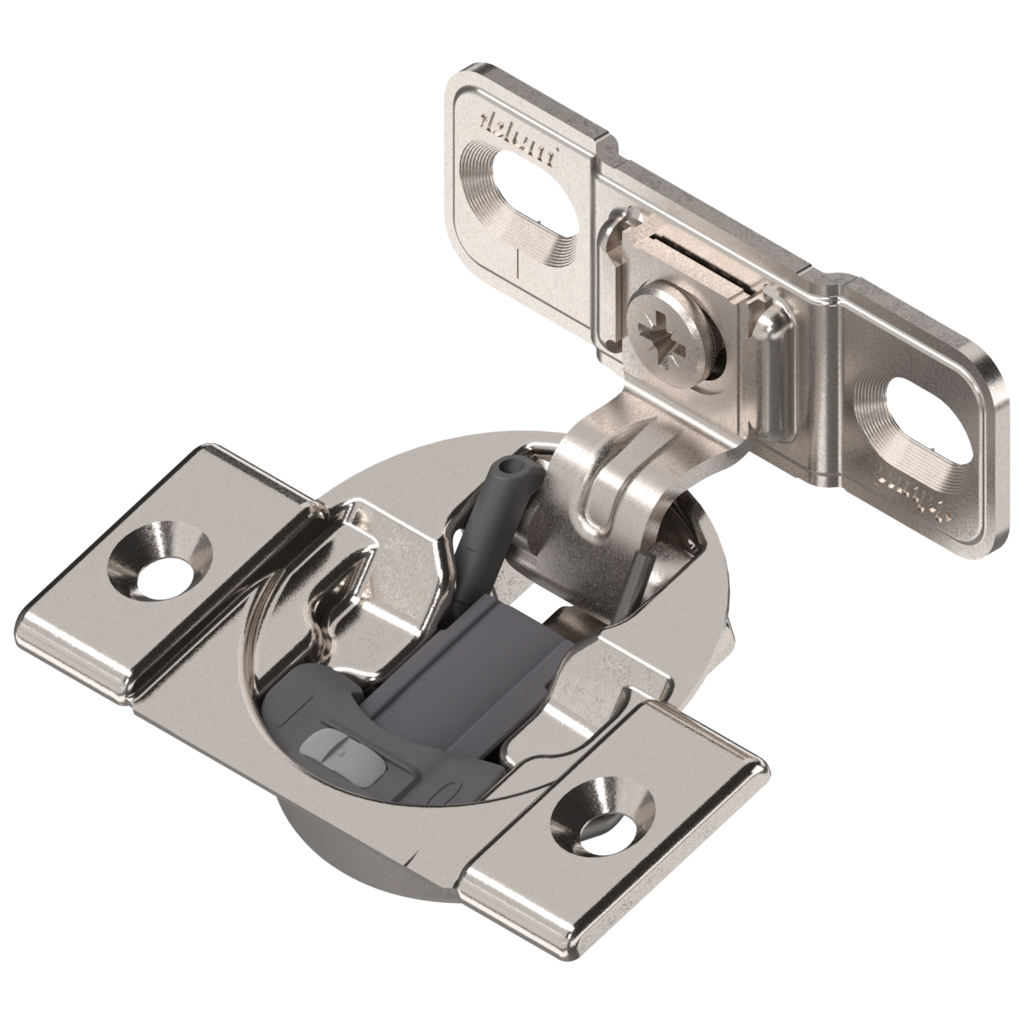

COMPACT/AVENTOS HK-XS frame hinge 107°
COMPACT BLUMOTION hinge, 1 3/8" or larger", 107°, with spring, mounting plate: for screwing on, boss: screw-on, Nickel plated
Ident no: 26299506
Part no.: 38B355BF22MB+138F01A NI
Box qty: 250 pcs
  • type: frame hinge
  • opening angle: 107 °

COMPACT BLUMOTION hinge, 1 3/8" or larger", 107°, with spring, mounting plate: for screwing on, boss: screw-on, Nickel plated

Ident no: 26299506 Part no.: 38B355BF22MB+138F01A NI Box qty: 250 pcs
  • type: frame hinge
  • opening angle: 107 °
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Das COMPACT-Scharnier ist ein verdecktes Scharnier für Korpusse in Rahmenbauweise mit integrierter BLUMOTION-Dämpfung. Es ist einteilig inklusive Montageplatte und ideal für Frontaufschläge ab 35 mm. Es wird vorne auf dem Rahmen/an der Korpusvorderseite montiert.
description Technical data expand_more

Technical data

type
frame hinge
boss fixing
for screwing on
closing mechanism
with spring
colour/surface
nickel plated
integrated soft-close mechanism
yes
