Distance template

chevron_left Back

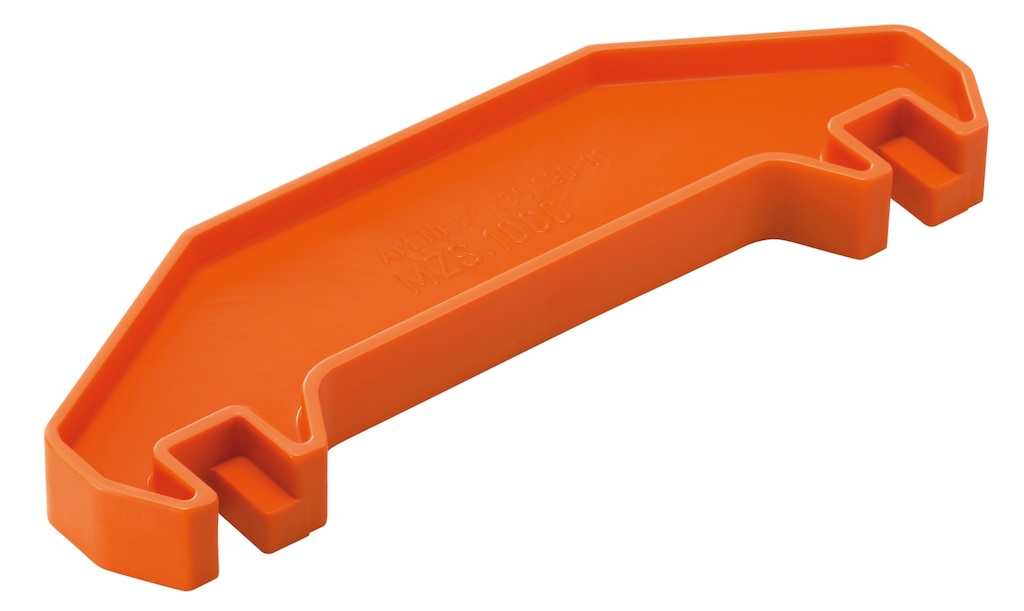

Distance template
Distance template, for MINIDRILL, for MINIPRESS M, for MINIPRESS P, Orange
Ident no: 06927199
Part no.: M30.0901 RASTERLEHR OR
Box qty: 1 pc
  • type: distance template

Distance template, for MINIDRILL, for MINIPRESS M, for MINIPRESS P, Orange

Ident no: 06927199 Part no.: M30.0901 RASTERLEHR OR Box qty: 1 pc
  • type: distance template
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Einfache und exakte Maßübertragung: Lehren und Werkzeuge unterstützen bei der Verarbeitung aller Blum-Produkte. Sie haben sich als Helfer bei der Montage bestens bewährt. Sowohl in der Werkstatt als auch beim Kunden vor Ort wird die Kombination von Präzision und praktischem Nutzen sehr geschätzt.
description Technical data expand_more

Technical data

type
distance template
colour/surface
orange
scope of delivery
1x distance template
suitable for
MINIDRILL / MINIPRESS M / MINIPRESS P
