Drilling depth template

chevron_left Back

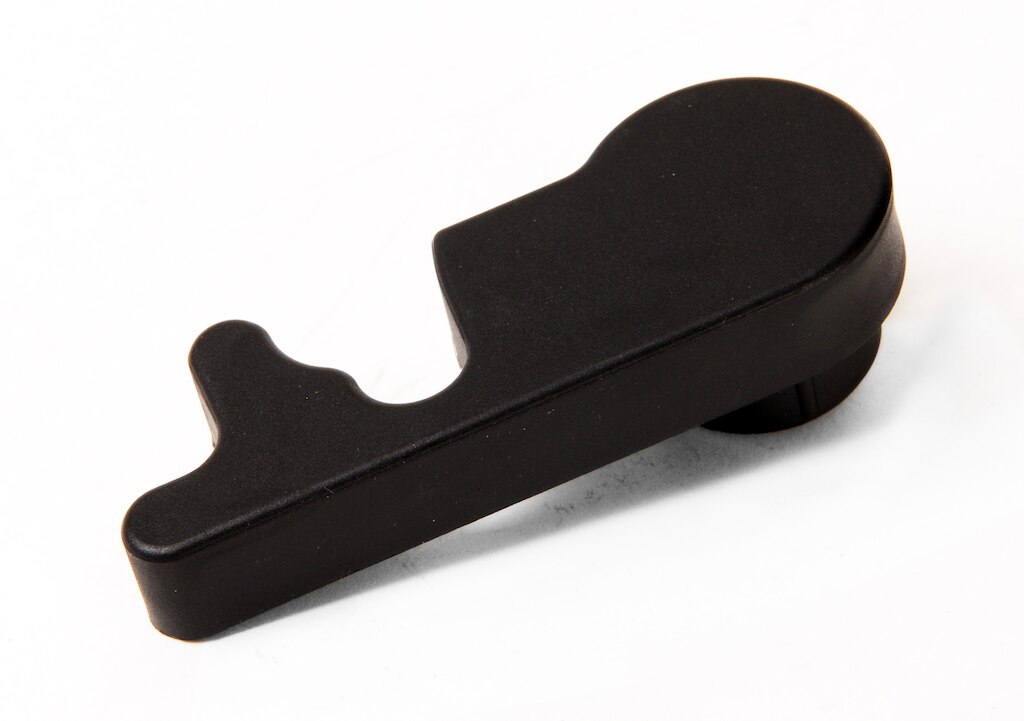

Drilling depth template
Drilling depth template, for MINIDRILL, for MINIPRESS, for MINIPRESS M / MINIPRESS P, Black
Ident no: 09029224
Part no.: M52.0909 BO-TIEF S
Box qty: 1 pc
  • type: drilling depth template

Drilling depth template, for MINIDRILL, for MINIPRESS, for MINIPRESS M / MINIPRESS P, Black

Ident no: 09029224 Part no.: M52.0909 BO-TIEF S Box qty: 1 pc
  • type: drilling depth template
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Einfache und exakte Maßübertragung: Lehren und Werkzeuge unterstützen bei der Verarbeitung aller Blum-Produkte. Sie haben sich als Helfer bei der Montage bestens bewährt. Sowohl in der Werkstatt als auch beim Kunden vor Ort wird die Kombination von Präzision und praktischem Nutzen sehr geschätzt.
description Technical data expand_more

Technical data

type
drilling depth template
colour/surface
black
scope of delivery
1x drilling depth template
suitable for
MINIDRILL / MINIPRESS / MINIPRESS M / MINIPRESS P
