Drilling head with quick connect chuck rotating sense of spindle 6 right, 5 left

chevron_left Back

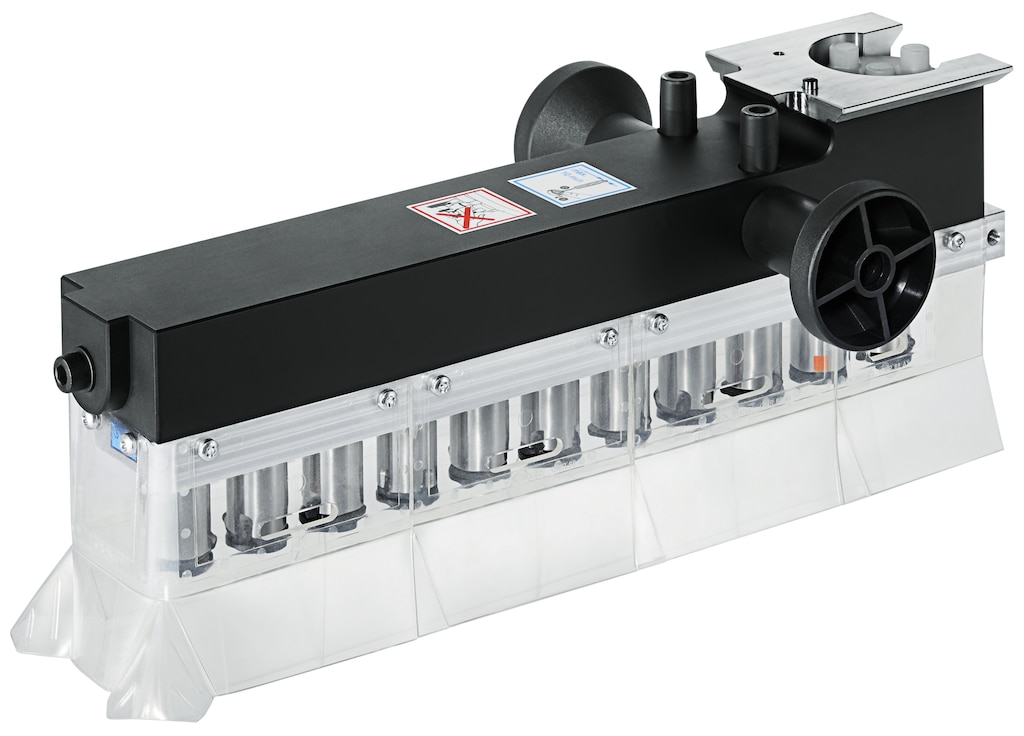

Drilling head with quick connect chuck rotating sense of spindle 6 right, 5 left
Drilling head with quick connect chuck rotating sense of spindle 6 right, 5 left
Ident no.: 08480231
Part no.: MZK.224S BO-K KO-11
Box qty: 1 pc
Drilling head for MINIPRESS PRO, for MINIPRESS top, for PRO-CENTER, number of spindles 11, with quick connect chuck, front fixing bracket, cabinet profiles, lift mechanism
Ident no.: 08480231 Part no.: MZK.224S BO-K KO-11 Box qty: 1 pc
error_outline

Please log in to see prices and availability.
  • build Technical data
  • CAD/CAM data
build Technical data expand_more

Technical data

type
drilling head
number of spindles
11
rotating sense of spindle
6 right, 5 left
scope of delivery
1x drilling head
drill bit/drilling head version
with quick connect chuck
