Drilling template for Blum distance bumper

chevron_left Back

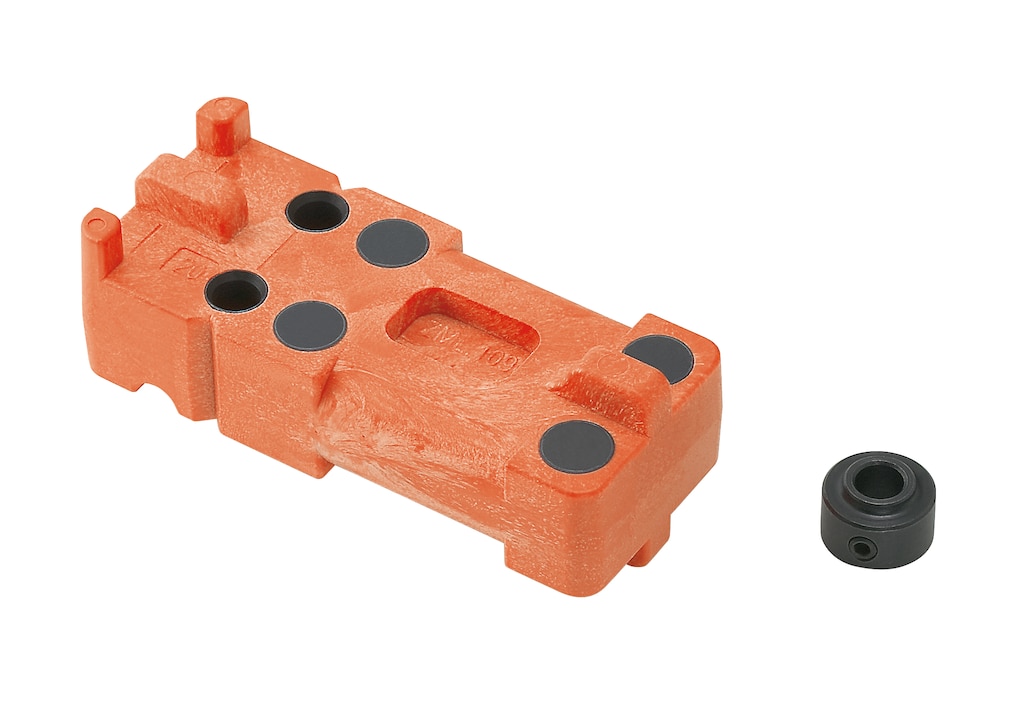

Drilling template for Blum distance bumper
Drilling template for Blum distance bumper, for 993.0530 distance bumpers / 993.0830 distance bumpers, Orange
Ident no: 07585169
Part no.: ZML.1090 BOHRLEHRE OR
Box qty: 1 pc
  • type: drilling template

Drilling template for Blum distance bumper, for 993.0530 distance bumpers / 993.0830 distance bumpers, Orange

Ident no: 07585169 Part no.: ZML.1090 BOHRLEHRE OR Box qty: 1 pc
  • type: drilling template
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Simple and precise transfer of measurements: templates and tools support the assembly of all Blum products. They have proven to be the very best aids when it comes to day-to-day assembly. They are a perfect combination of high precision and practical value which is greatly appreciated both in workshops and directly on site.
description Technical data expand_more

Technical data

type
drilling template
colour/surface
orange
material
nylon/steel
scope of delivery
1x drilling template
template suitable for
Blum distance bumper
