Drilling template for cabinet connectors

chevron_left Back

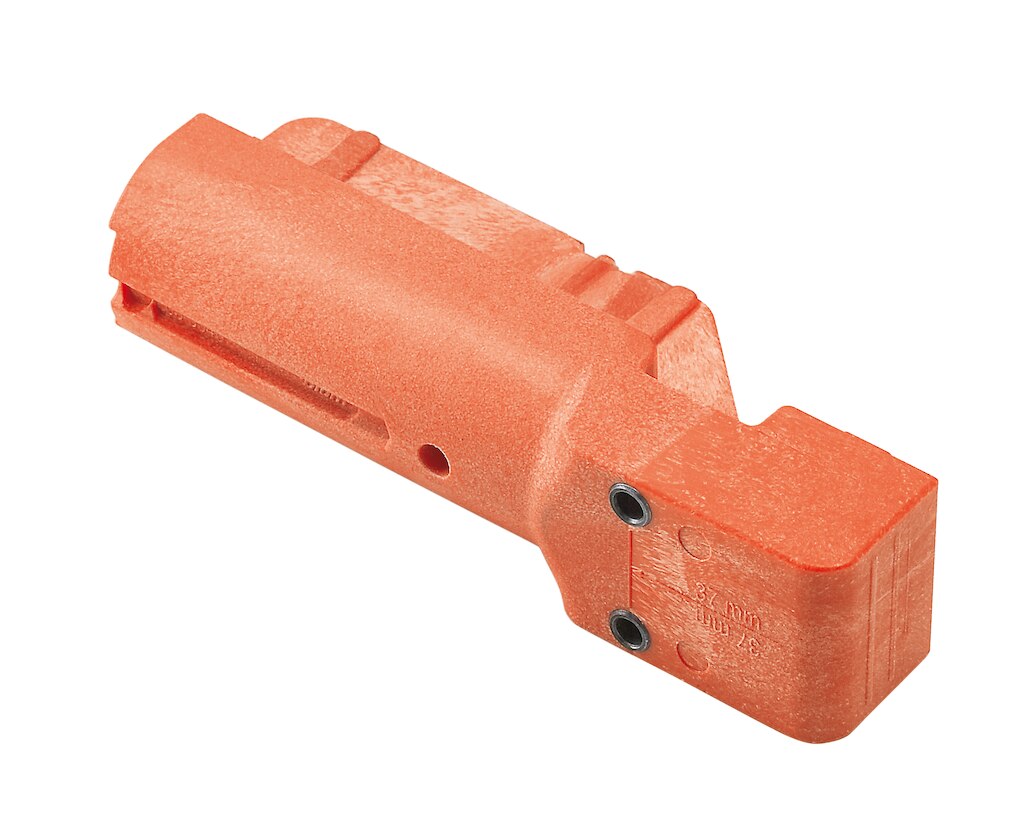

Drilling template for cabinet connectors
Drilling template for cabinet connectors, for connector 42.07, Orange
Ident no: 07530009
Part no.: 65.5040 BOHRLEHRE OR
Box qty: 1 pc

Drilling template for cabinet connectors, for connector 42.07, Orange

Ident no: 07530009 Part no.: 65.5040 BOHRLEHRE OR Box qty: 1 pc
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Einfache und exakte Maßübertragung: Lehren und Werkzeuge unterstützen bei der Verarbeitung aller Blum-Produkte. Sie haben sich als Helfer bei der Montage bestens bewährt. Sowohl in der Werkstatt als auch beim Kunden vor Ort wird die Kombination von Präzision und praktischem Nutzen sehr geschätzt.
description Technical data expand_more

Technical data

type
drilling template
colour/surface
orange
material
nylon/steel
scope of delivery
1x drilling template
template suitable for
cabinet connectors
