Drilling template for CLIP and MODUL cruciform mounting plates

chevron_left Back

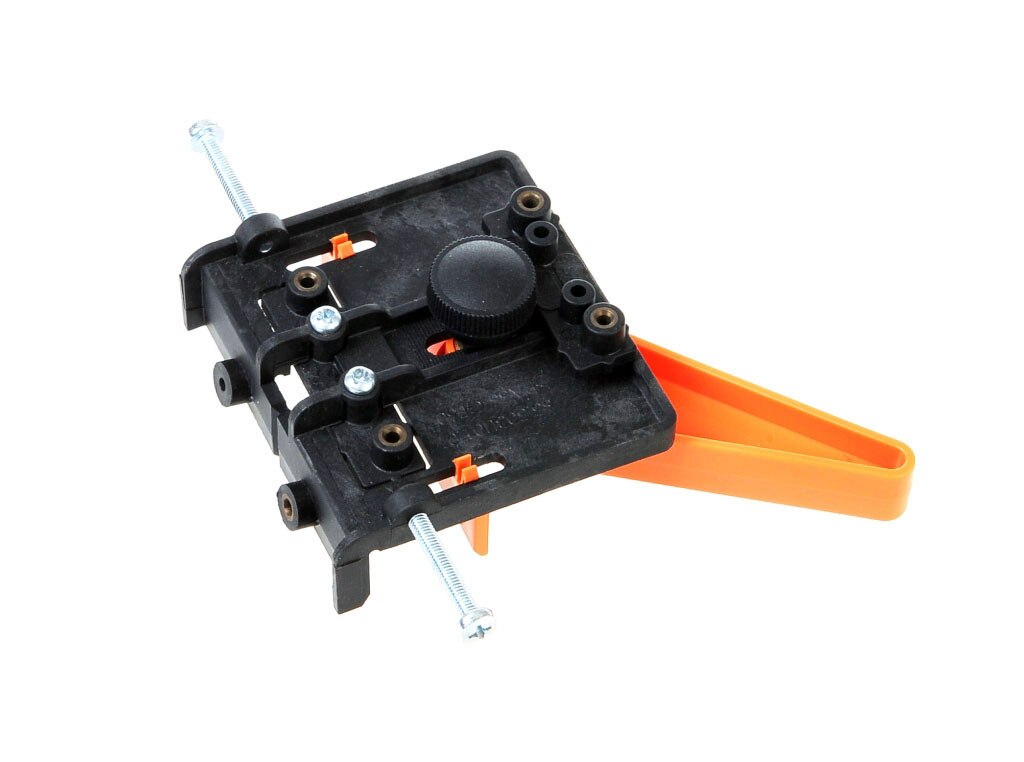

Drilling template for CLIP and MODUL cruciform mounting plates
Drilling template, for Frame adapter plates, for CLIP cruciform mounting plates / MODUL cruciform mounting plates, Black
Ident no: 05945214
Part no.: 65.5030.01BOHRLEHRE S
Box qty: 1 pc
  • type: drilling template

Drilling template, for Frame adapter plates, for CLIP cruciform mounting plates / MODUL cruciform mounting plates, Black

Ident no: 05945214 Part no.: 65.5030.01BOHRLEHRE S Box qty: 1 pc
  • type: drilling template
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Einfache und exakte Maßübertragung: Lehren und Werkzeuge unterstützen bei der Verarbeitung aller Blum-Produkte. Sie haben sich als Helfer bei der Montage bestens bewährt. Sowohl in der Werkstatt als auch beim Kunden vor Ort wird die Kombination von Präzision und praktischem Nutzen sehr geschätzt.
description Technical data expand_more

Technical data

type
drilling template
colour/surface
black
material
nylon/steel
scope of delivery
1x drilling template
template suitable for
CLIP and MODUL cruciform mounting plates
