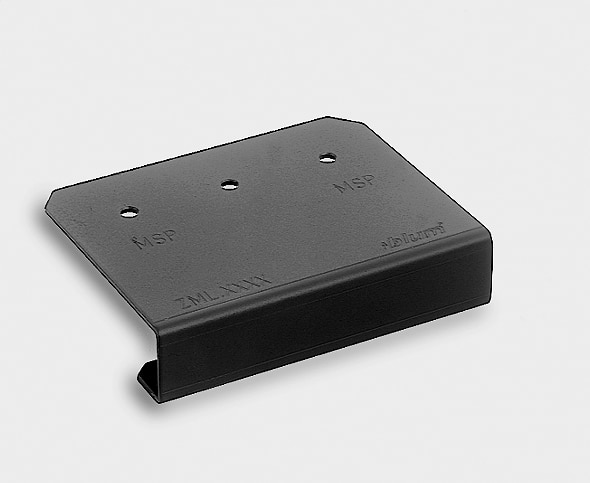

Drilling template for front fixing

Drilling template for front fixing
Drilling template for front fixing
Ident no: 02193644
Part no.: ZML.0050 BOHRLEHRE S-ZN
Box qty: 1 pc
  • type: drilling template

Drilling template for front fixing

  • type: drilling template
Ident no: 02193644 Part no.: ZML.0050 BOHRLEHRE S-ZN Box qty: 1 pc
error_outline

Please log in to see prices and availability.
info Product information expand_more

Product information

Simple and precise transfer of measurements: templates and tools support the assembly of all Blum products. They have proven to be the very best aids when it comes to day-to-day assembly. They are a perfect combination of high precision and practical value which is greatly appreciated both in workshops and directly on site.
description Technical data expand_more

Technical data

type
drilling template
colour/surface
black-nickel plated
material
steel
scope of delivery
1x Operating instructions, 1x drilling template
template suitable for
front fixing
