Drilling template for hinges Ø 2.5 and 8 mm

chevron_left Back

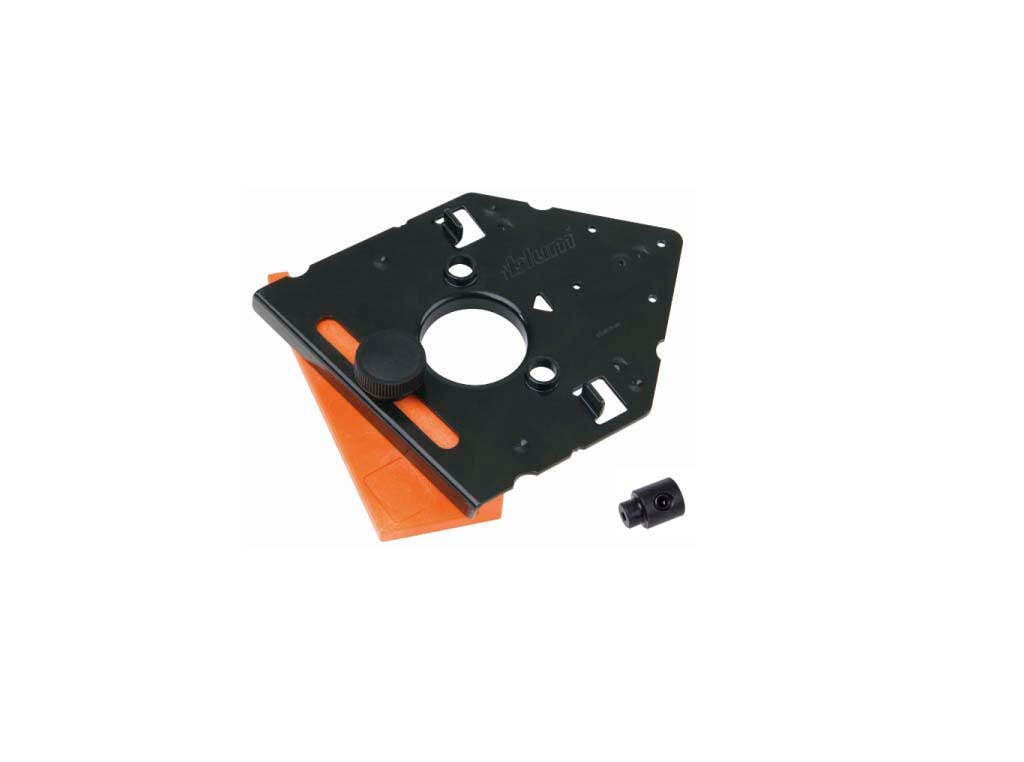

Drilling template for hinges Ø 2.5 and 8 mm
Drilling template for hinges d 2.5 and 8 mm, for EXPANDO-hinges / INSERTA furniture hinges / screw-on mounting plate / screw-on boss hinges
Ident no: 05512402
Part no.: 65.059A BOHRL INS
Box qty: 1 pc
  • type: drilling template

Drilling template for hinges d 2.5 and 8 mm, for EXPANDO-hinges / INSERTA furniture hinges / screw-on mounting plate / screw-on boss hinges

Ident no: 05512402 Part no.: 65.059A BOHRL INS Box qty: 1 pc
  • type: drilling template
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Simple and precise transfer of measurements: templates and tools support the assembly of all Blum products. They have proven to be the very best aids when it comes to day-to-day assembly. They are a perfect combination of high precision and practical value which is greatly appreciated both in workshops and directly on site.
description Technical data expand_more

Technical data

type
drilling template
material
nylon/steel
scope of delivery
1x drilling template
template suitable for
hinges Ø 2.5 and 8 mm
type of template
drilling template for hinges Ø 2.5 and 8 mm
