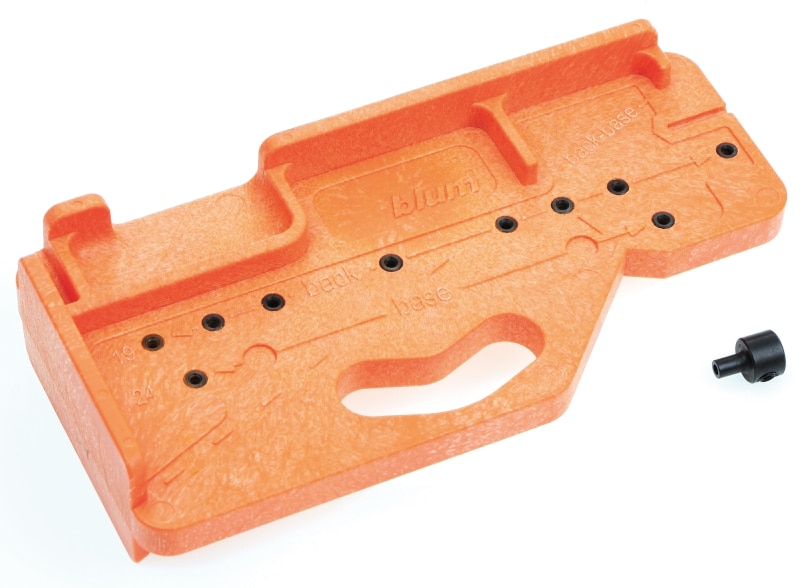

Drilling template for LEGRABOX base and back panel

Drilling template for LEGRABOX base and back panel
Drilling template for LEGRABOX base and back panel
Ident no: 07267829
Part no.: ZML.7000 BOHRLEHRE OR
Box qty: 1 pc
  • type: drilling template

Drilling template for LEGRABOX base and back panel

  • type: drilling template
Ident no: 07267829 Part no.: ZML.7000 BOHRLEHRE OR Box qty: 1 pc
error_outline

Please log in to see prices and availability.
info Product information expand_more

Product information

Simple and precise transfer of measurements: templates and tools support the assembly of all Blum products. They have proven to be the very best aids when it comes to day-to-day assembly. They are a perfect combination of high precision and practical value which is greatly appreciated both in workshops and directly on site.
description Technical data expand_more

Technical data

type
drilling template
assembly option
LEGRABOX
colour/surface
orange
material
nylon
scope of delivery
1x Operating instructions, 1x drilling template
