Drilling template for SERVO-DRIVE bracket profile attachment

chevron_left Back

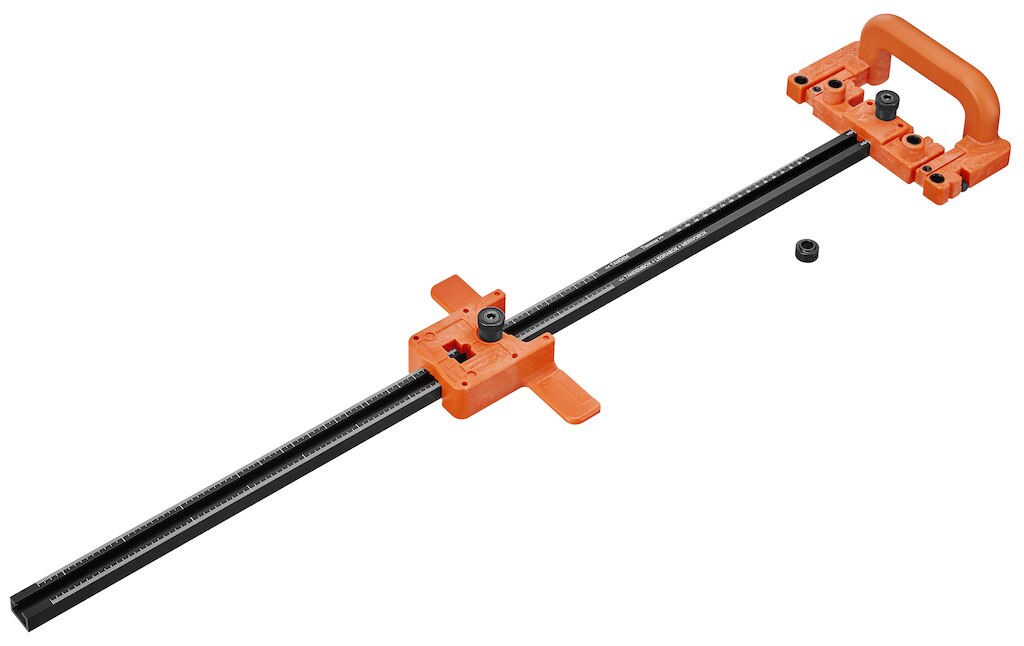

Drilling template for SERVO-DRIVE bracket profile attachment
Drilling template for SERVO-DRIVE bracket profile attachment, for SERVO-DRIVE bracket profile attachments, top and bottom, orange/black
Ident no: 03361829
Part no.: ZML.1150.03BOHRLEHRE OR/S
Box qty: 1 pc
  • type: drilling template

Drilling template for SERVO-DRIVE bracket profile attachment, for SERVO-DRIVE bracket profile attachments, top and bottom, orange/black

Ident no: 03361829 Part no.: ZML.1150.03BOHRLEHRE OR/S Box qty: 1 pc
  • type: drilling template
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Einfache und exakte Maßübertragung: Lehren und Werkzeuge unterstützen bei der Verarbeitung aller Blum-Produkte. Sie haben sich als Helfer bei der Montage bestens bewährt. Sowohl in der Werkstatt als auch beim Kunden vor Ort wird die Kombination von Präzision und praktischem Nutzen sehr geschätzt.
description Technical data expand_more

Technical data

type
drilling template
colour/surface
orange/black
scope of delivery
1x drilling template
template suitable for
SERVO-DRIVE bracket profile attachment
type of template
drilling template for SERVO-DRIVE bracket profile attachment
