ECODRILL drilling template for hinge systems

chevron_left Back
ECODRILL drilling template for hinge systems

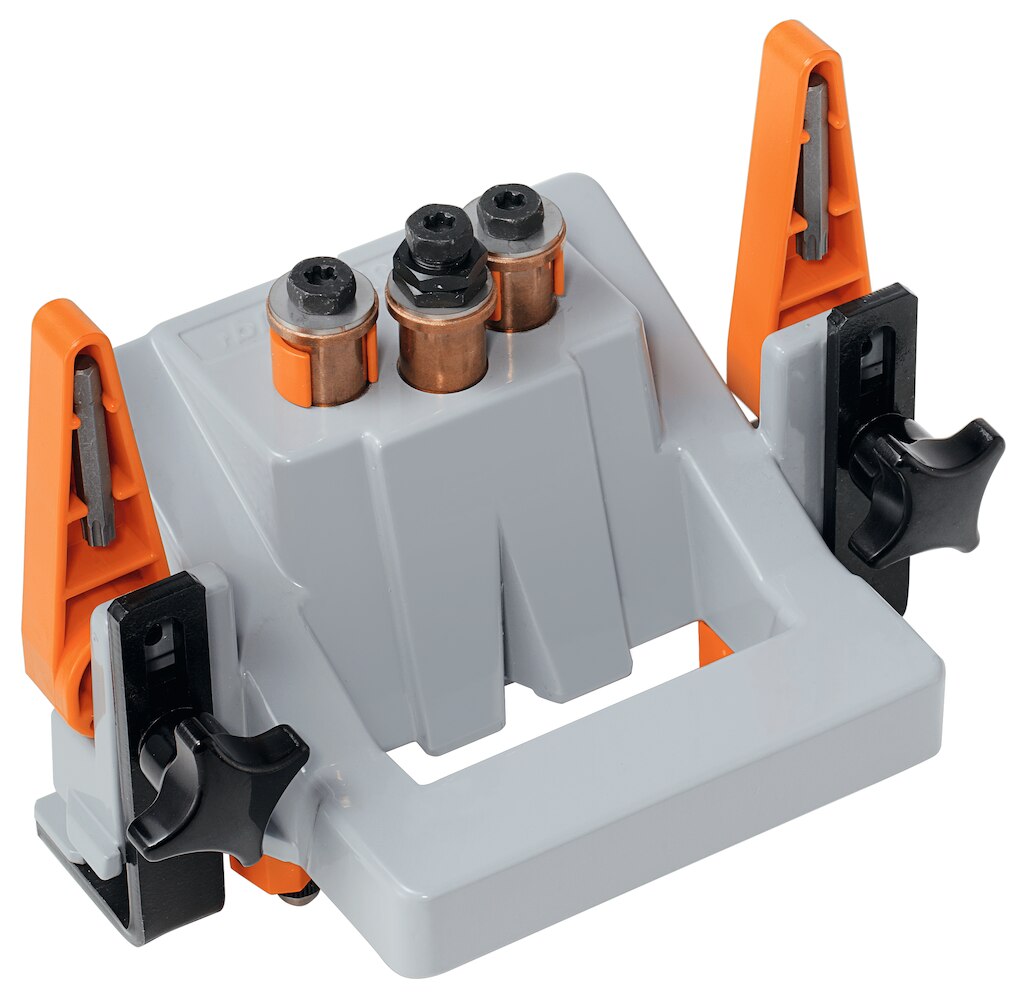

ECODRILL, vertical drilling, R7001 silver grey
Ident no: 03093040
Part no.: M31.1000 ECODRILL R701
Box qty: 1 pc

ECODRILL, vertical drilling, R7001 silver grey

Ident no: 03093040 Part no.: M31.1000 ECODRILL R701 Box qty: 1 pc
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Einfache und exakte Maßübertragung: Lehren und Werkzeuge unterstützen bei der Verarbeitung aller Blum-Produkte. Sie haben sich als Helfer bei der Montage bestens bewährt. Sowohl in der Werkstatt als auch beim Kunden vor Ort wird die Kombination von Präzision und praktischem Nutzen sehr geschätzt.
description Technical data expand_more

Technical data

type
drilling template
colour/surface
RAL 7001 silver grey
drilling and processing direction
vertical drilling
scope of delivery
1x ECODRILL
template suitable for
hinge systems
