ECODRILL drilling template for hinge systems

chevron_left Back

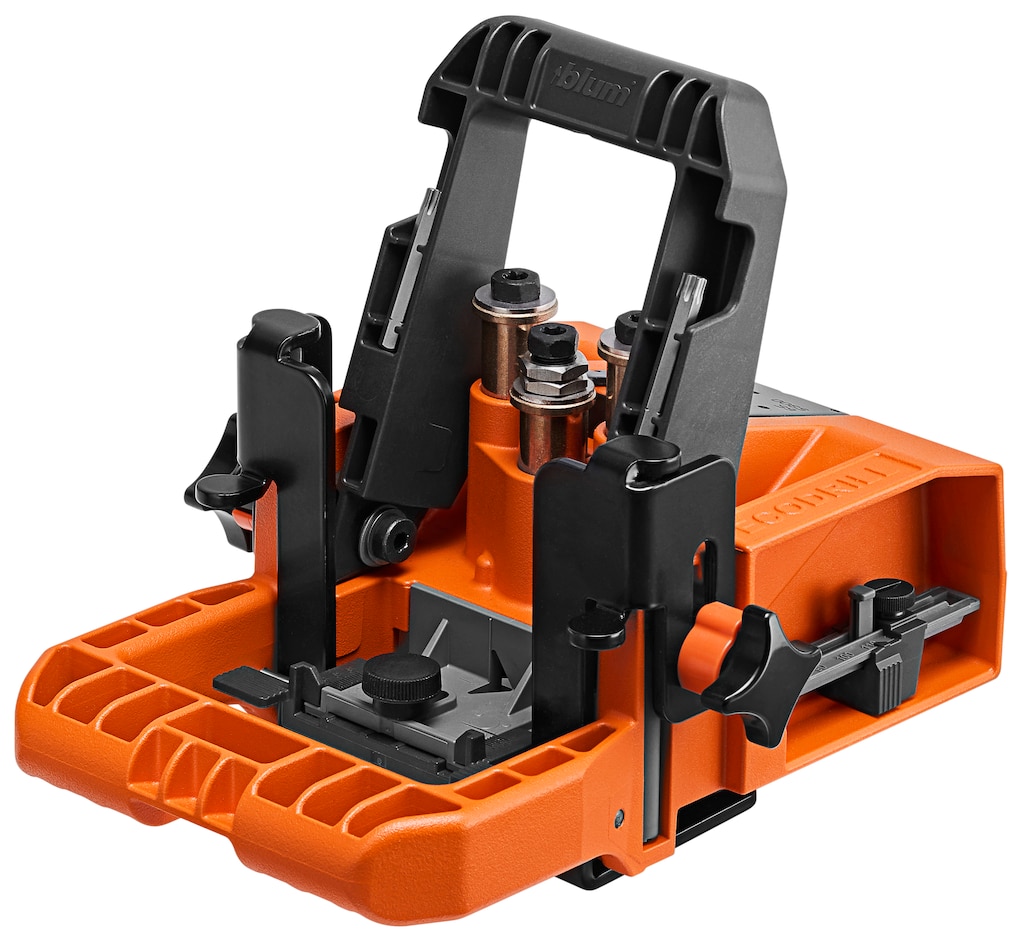

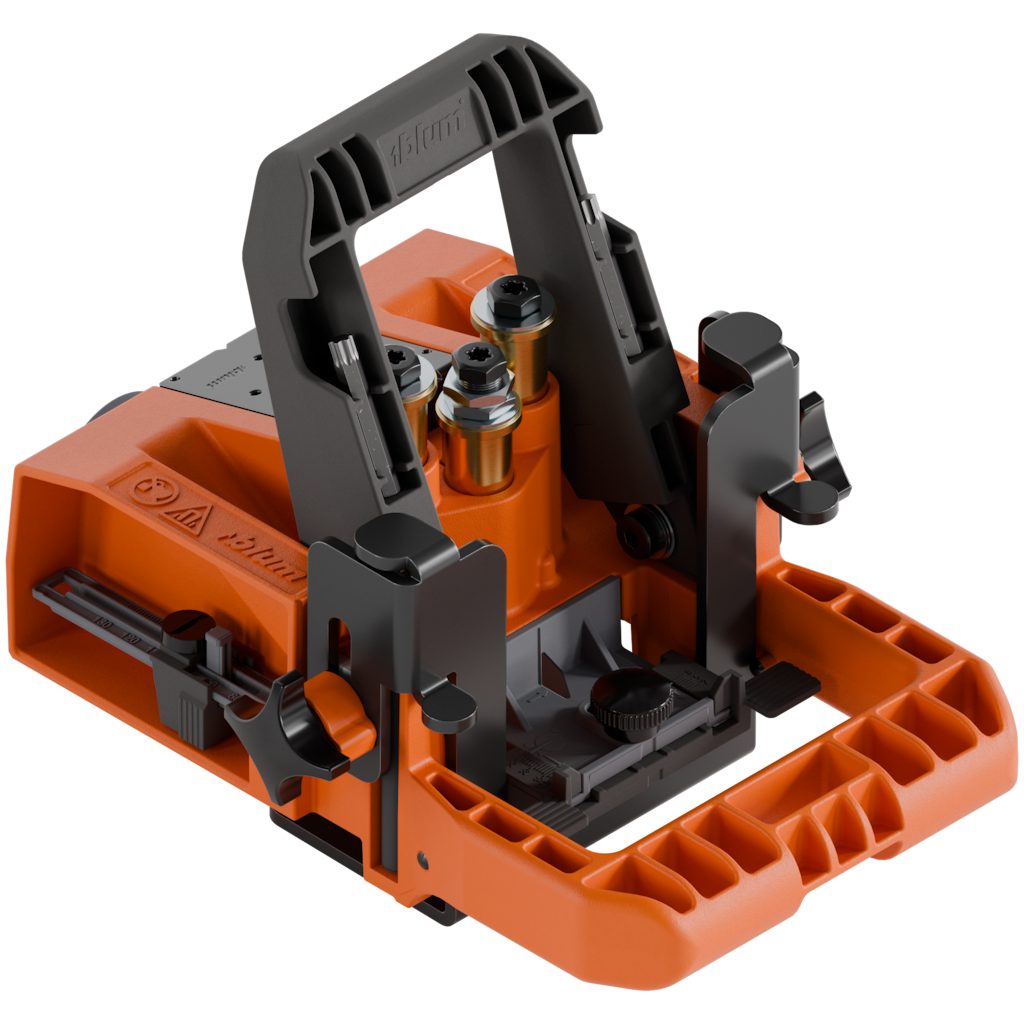

ECODRILL drilling template for hinge systems
ECODRILL, vertical drilling, with side stops 80 - 130 mm, extraction system connection 30 - 42/44 - 46 mm, Edge distance boss drilling 2 - 8 mm, Orange
Ident no: 07148933
Part no.: M31.1000.01ECODRILL OR
Box qty: 1 pc

ECODRILL, vertical drilling, with side stops 80 - 130 mm, extraction system connection 30 - 42/44 - 46 mm, Edge distance boss drilling 2 - 8 mm, Orange

Ident no: 07148933 Part no.: M31.1000.01ECODRILL OR Box qty: 1 pc
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Simple and precise transfer of measurements: templates and tools support the assembly of all Blum products. They have proven to be the very best aids when it comes to day-to-day assembly. They are a perfect combination of high precision and practical value which is greatly appreciated both in workshops and directly on site.
description Technical data expand_more

Technical data

type
drilling template
colour/surface
orange
drilling and processing direction
vertical drilling
scope of delivery
1x ECODRILL, 1x Operating instructions
template suitable for
hinge systems
