Front gap template for MERIVOBOX and TANDEMBOX

chevron_left Back

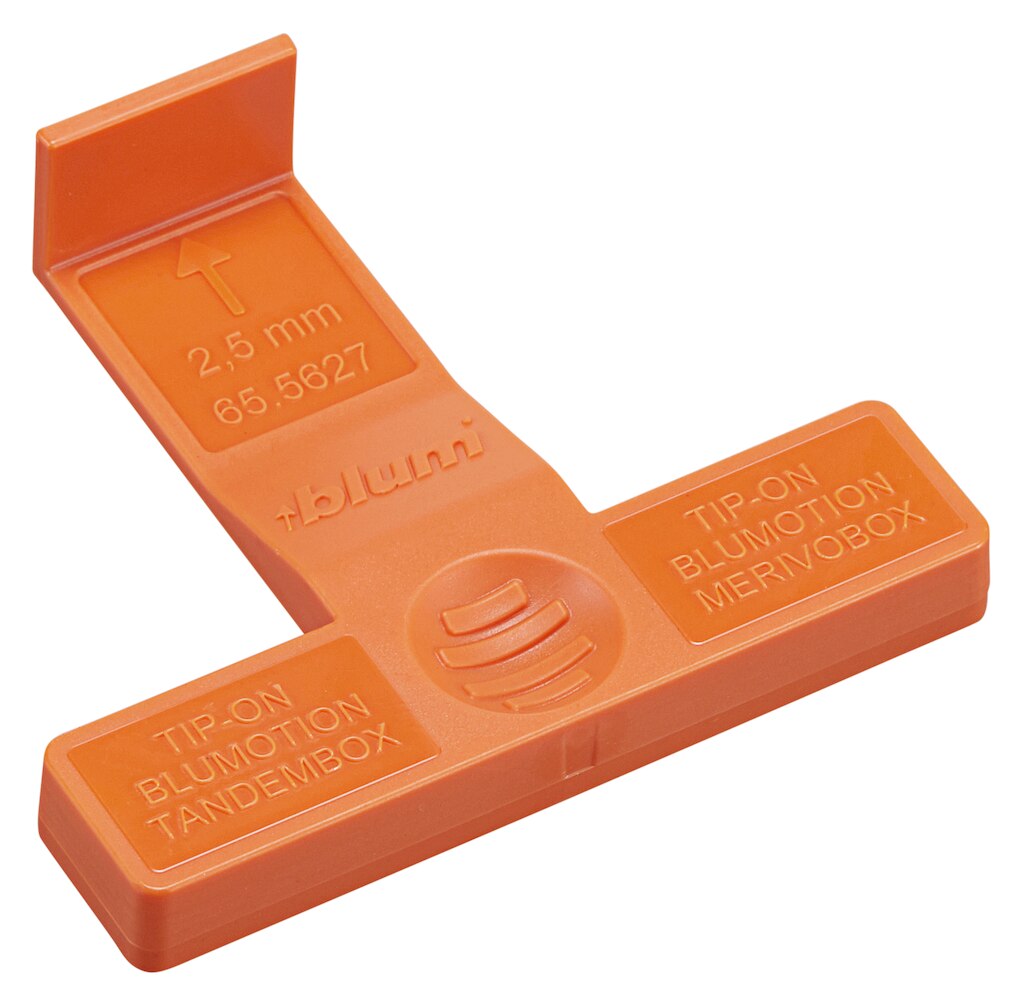

Front gap template for MERIVOBOX and TANDEMBOX
Front gap template for MERIVOBOX and TANDEMBOX, for Front rear side, for TIP-ON BLUMOTION for MERIVOBOX / TIP-ON BLUMOTION for TANDEMBOX, Orange
Ident no: 01673395
Part no.: 65.5627 ES-L TB/MV OR
Box qty: 1 pc
  • type: front gap template

Front gap template for MERIVOBOX and TANDEMBOX, for Front rear side, for TIP-ON BLUMOTION for MERIVOBOX / TIP-ON BLUMOTION for TANDEMBOX, Orange

Ident no: 01673395 Part no.: 65.5627 ES-L TB/MV OR Box qty: 1 pc
  • type: front gap template
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Simple and precise transfer of measurements: templates and tools support the assembly of all Blum products. They have proven to be the very best aids when it comes to day-to-day assembly. They are a perfect combination of high precision and practical value which is greatly appreciated both in workshops and directly on site.
description Technical data expand_more

Technical data

type
front gap template
colour/surface
orange
length
0 mm
material
nylon
scope of delivery
1x positioninging template
