Front gap template for TIP-ON BLUMOTION

chevron_left Back

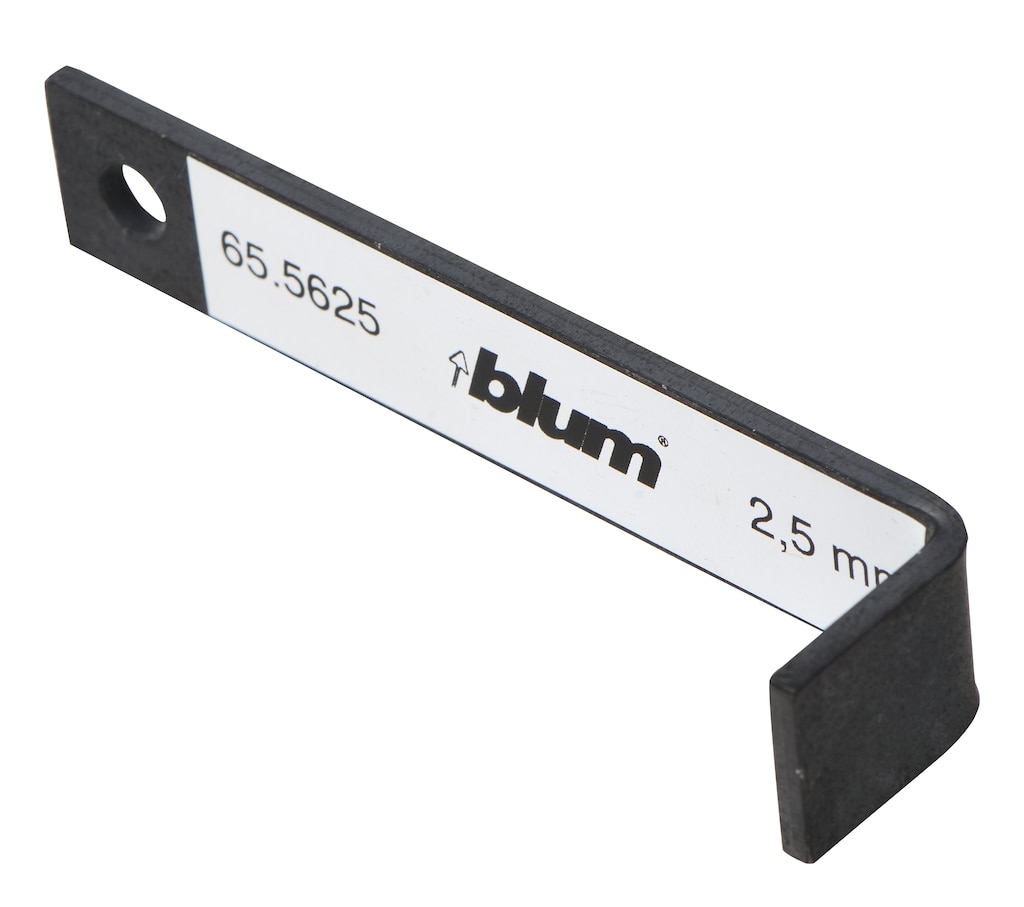

Front gap template for TIP-ON BLUMOTION
Setup template, for Front rear side, for TIP-ON BLUMOTION, Ntrcarb./black oxid.
Ident no: 07270236
Part no.: 65.5625 FR-L TBX NCSO
Box qty: 1 pc
  • type: front gap template

Setup template, for Front rear side, for TIP-ON BLUMOTION, Ntrcarb./black oxid.

Ident no: 07270236 Part no.: 65.5625 FR-L TBX NCSO Box qty: 1 pc
  • type: front gap template
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Einfache und exakte Maßübertragung: Lehren und Werkzeuge unterstützen bei der Verarbeitung aller Blum-Produkte. Sie haben sich als Helfer bei der Montage bestens bewährt. Sowohl in der Werkstatt als auch beim Kunden vor Ort wird die Kombination von Präzision und praktischem Nutzen sehr geschätzt.
description Technical data expand_more

Technical data

type
front gap template
colour/surface
nitrocarburised and black oxidised
length
0 mm
material
steel
scope of delivery
1x positioninging template
