Gauge set for cabinet profiles

chevron_left Back

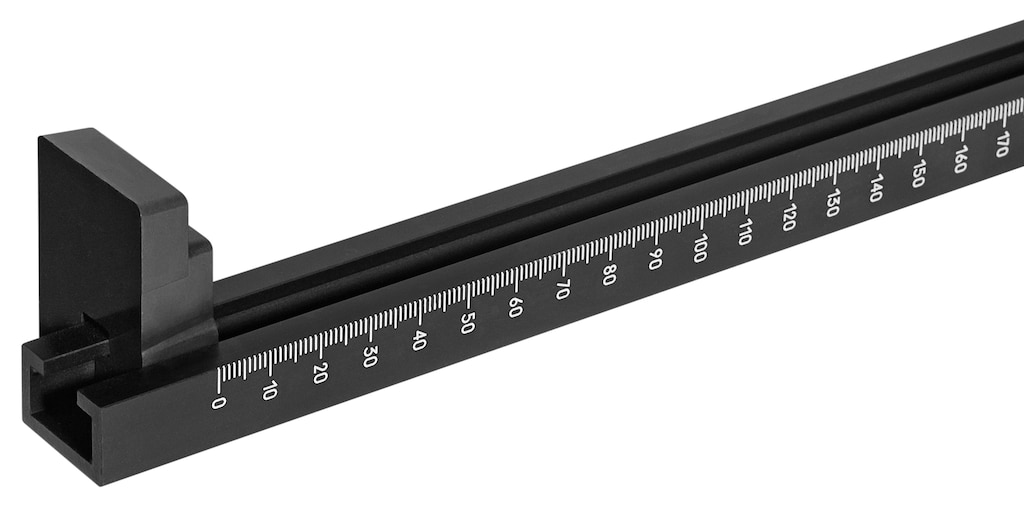

Gauge set for cabinet profiles
Drilling template, for Cabinet profiles, for LEGRABOX / MERIVOBOX / METABOX / MOVENTO / TANDEM / TANDEMBOX, scale over total length, E6/C35 black
Ident no: 08524722
Part no.: T65.5090 STANGE C35
Box qty: 1 pc
  • type: gauge set

Drilling template, for Cabinet profiles, for LEGRABOX / MERIVOBOX / METABOX / MOVENTO / TANDEM / TANDEMBOX, scale over total length, E6/C35 black

Ident no: 08524722 Part no.: T65.5090 STANGE C35 Box qty: 1 pc
  • type: gauge set
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Einfache und exakte Maßübertragung: Lehren und Werkzeuge unterstützen bei der Verarbeitung aller Blum-Produkte. Sie haben sich als Helfer bei der Montage bestens bewährt. Sowohl in der Werkstatt als auch beim Kunden vor Ort wird die Kombination von Präzision und praktischem Nutzen sehr geschätzt.
description Technical data expand_more

Technical data

type
gauge set
colour/surface
E6/C35 black
length
2200 mm
material
aluminium
scope of delivery
1x Gauge set
