Gauge set for CRISTALLO glass door hinges

chevron_left Back

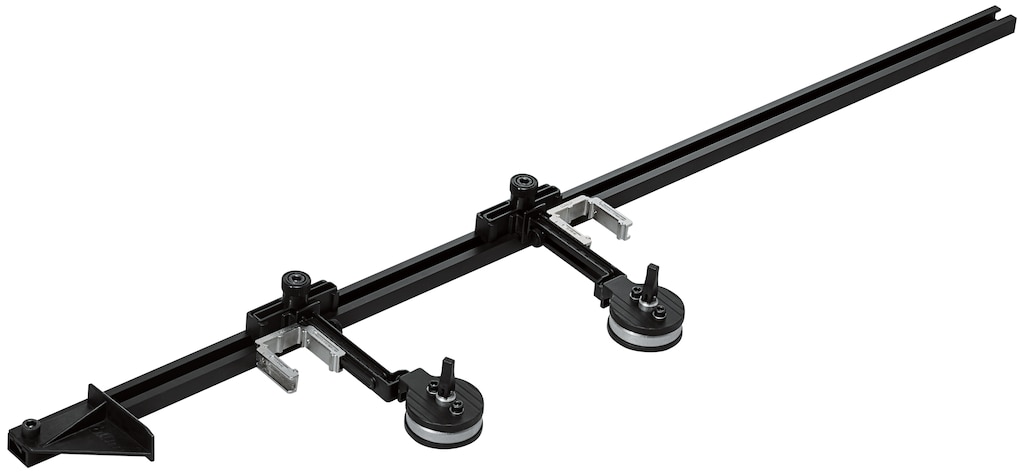

Gauge set for CRISTALLO glass door hinges
Adhesion template for CRISTALLO glass door hinges
Ident no: 02888272
Part no.: 65.4500.01KLEBELEHRE
Box qty: 1 pc
  • type: gauge set

Adhesion template for CRISTALLO glass door hinges

Ident no: 02888272 Part no.: 65.4500.01KLEBELEHRE Box qty: 1 pc
  • type: gauge set
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Einfache und exakte Maßübertragung: Lehren und Werkzeuge unterstützen bei der Verarbeitung aller Blum-Produkte. Sie haben sich als Helfer bei der Montage bestens bewährt. Sowohl in der Werkstatt als auch beim Kunden vor Ort wird die Kombination von Präzision und praktischem Nutzen sehr geschätzt.
description Technical data expand_more

Technical data

type
gauge set
material
steel/zinc/nylon
scope of delivery
1x Gauge set
template suitable for
CRISTALLO glass door hinges
type of template
adhesion template for CRISTALLO glass door hinges
