Gauge set for hinge systems

chevron_left Back

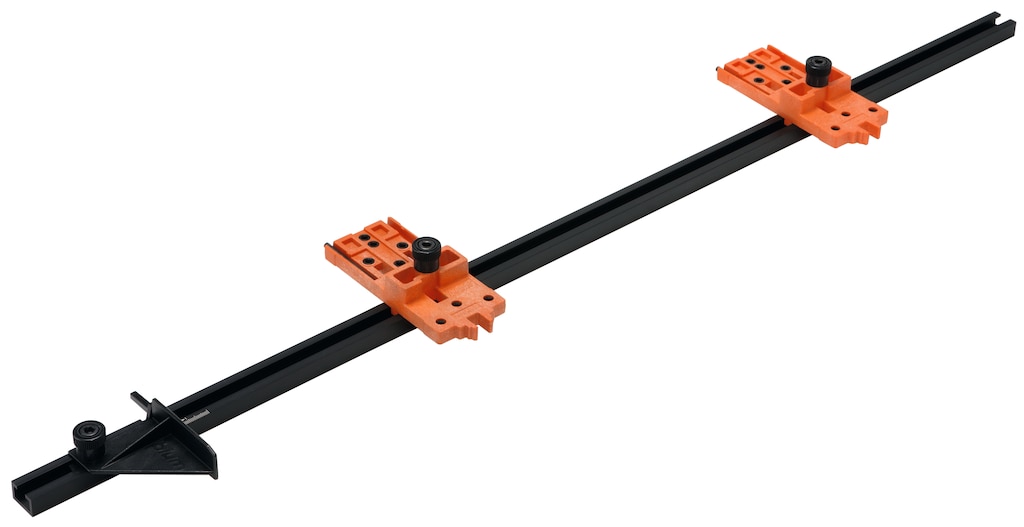

Gauge set for hinge systems
Drilling template for hinge systems, for CLIP mounting plates / CLIP furniture hinges, Orange
Ident no: 06165045
Part no.: 65.7500.03ANSCH-LEHR OR
Box qty: 1 pc
  • type: gauge set

Drilling template for hinge systems, for CLIP mounting plates / CLIP furniture hinges, Orange

Ident no: 06165045 Part no.: 65.7500.03ANSCH-LEHR OR Box qty: 1 pc
  • type: gauge set
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Einfache und exakte Maßübertragung: Lehren und Werkzeuge unterstützen bei der Verarbeitung aller Blum-Produkte. Sie haben sich als Helfer bei der Montage bestens bewährt. Sowohl in der Werkstatt als auch beim Kunden vor Ort wird die Kombination von Präzision und praktischem Nutzen sehr geschätzt.
description Technical data expand_more

Technical data

type
gauge set
colour/surface
orange
length
1000 mm
material
nylon/steel
scope of delivery
1x Gauge set
CAD/CAM data expand_more
Almost there!

Almost there!

Register now and get free CAD/CAM data download for this product.

person Log in Register now
SpinnerBlum CAD/CAM
