Insertion ram for hinges, all opening angles – except MINI and COMPACT

chevron_left Back

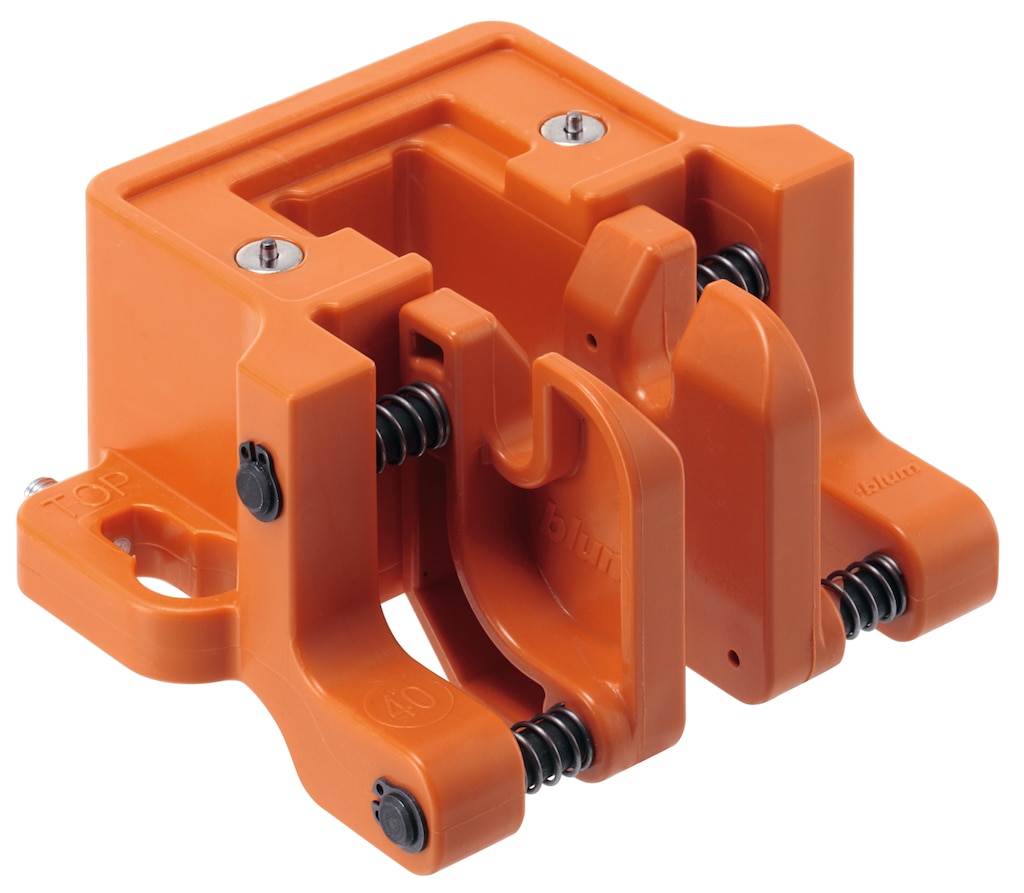

Insertion ram for hinges, all opening angles – except MINI and COMPACT
Insertion ram for hinges, all opening angles – except MINI and COMPACT
Ident no: 09051769
Part no.: MZM.0040 MATRIZE OR
Box qty: 1 pc
Insertion ram, for MINIPRESS M for hinges, all opening angles – except MINI and COMPACT, Orange
Ident no: 09051769 Part no.: MZM.0040 MATRIZE OR Box qty: 1 pc
error_outline

Please log in to see prices and availability.

  • description Technical data
  • CAD/CAM data
description Technical data expand_more

Technical data

type
insertion ram
colour/surface
orange
material
nylon
scope of delivery
1x insertion ram
assembly option
hinges, all opening angles – except MINI and COMPACT
