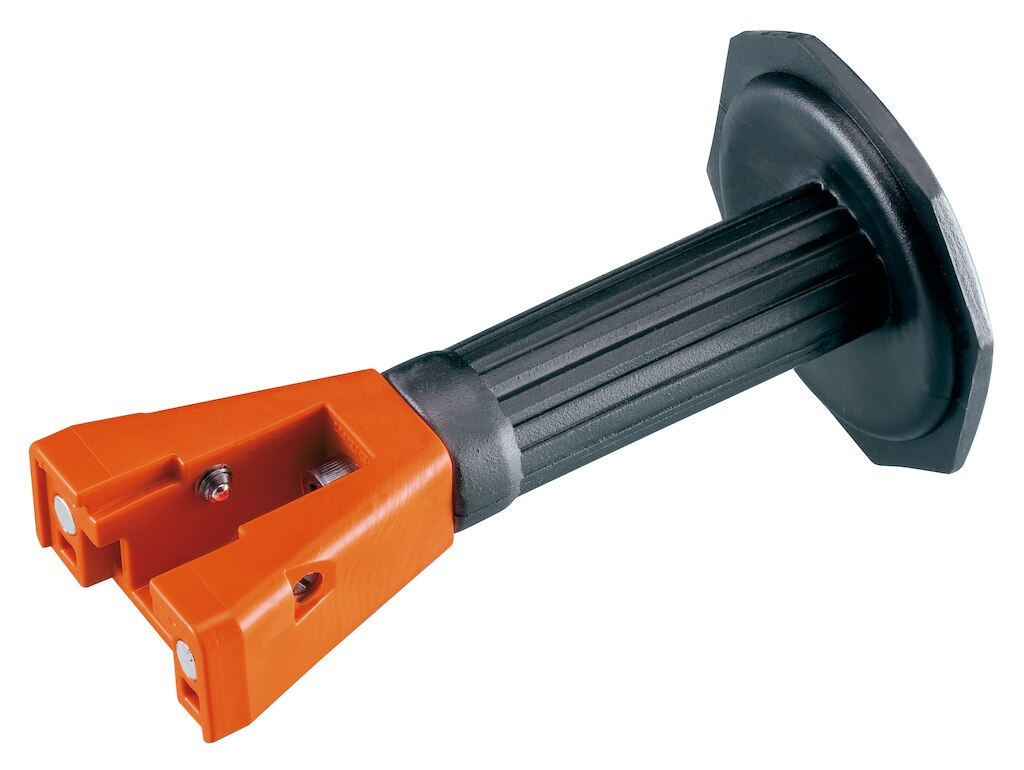

Insertion tool for hinge systems

Insertion tool for hinge systems
Insertion tool for hinge systems
Ident no: 09168759
Part no.: ZME.0710 STEMPEL OR
Box qty: 1 pc
  • type: insertion tool

Insertion tool for hinge systems

  • type: insertion tool
Ident no: 09168759 Part no.: ZME.0710 STEMPEL OR Box qty: 1 pc
error_outline

Please log in to see prices and availability.
info Product information expand_more

Product information

Simple and precise transfer of measurements: templates and tools support the assembly of all Blum products. They have proven to be the very best aids when it comes to day-to-day assembly. They are a perfect combination of high precision and practical value which is greatly appreciated both in workshops and directly on site.
description Technical data expand_more

Technical data

type
insertion tool
colour/surface
orange
material
nylon
scope of delivery
1x insertion tool
template suitable for
hinge systems
