Insertion tool for horizontal mounting plates

chevron_left Back

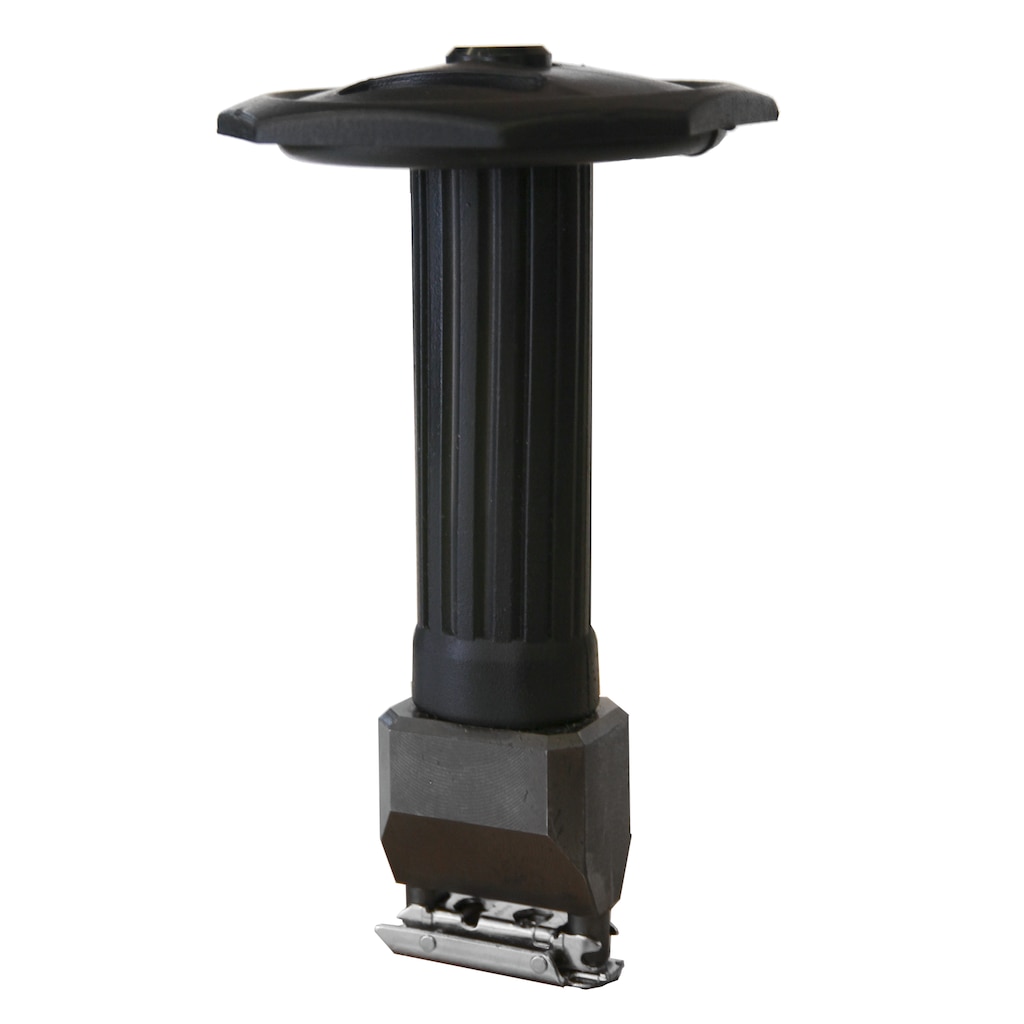

Insertion tool for horizontal mounting plates
Hand insertion tool for Straight steel mounting plate 177H3100/177H3130, Black
Ident no: 07042379
Part no.: ZME.0730 STEMPEL S
Box qty: 1 pc
  • type: insertion tool

Hand insertion tool for Straight steel mounting plate 177H3100/177H3130, Black

Ident no: 07042379 Part no.: ZME.0730 STEMPEL S Box qty: 1 pc
  • type: insertion tool
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Einfache und exakte Maßübertragung: Lehren und Werkzeuge unterstützen bei der Verarbeitung aller Blum-Produkte. Sie haben sich als Helfer bei der Montage bestens bewährt. Sowohl in der Werkstatt als auch beim Kunden vor Ort wird die Kombination von Präzision und praktischem Nutzen sehr geschätzt.
description Technical data expand_more

Technical data

type
insertion tool
colour/surface
black
material
nylon/steel
scope of delivery
1x insertion tool
template suitable for
horizontal mounting plates
