LEGRABOX cabinet profile 500 mm

chevron_left Back

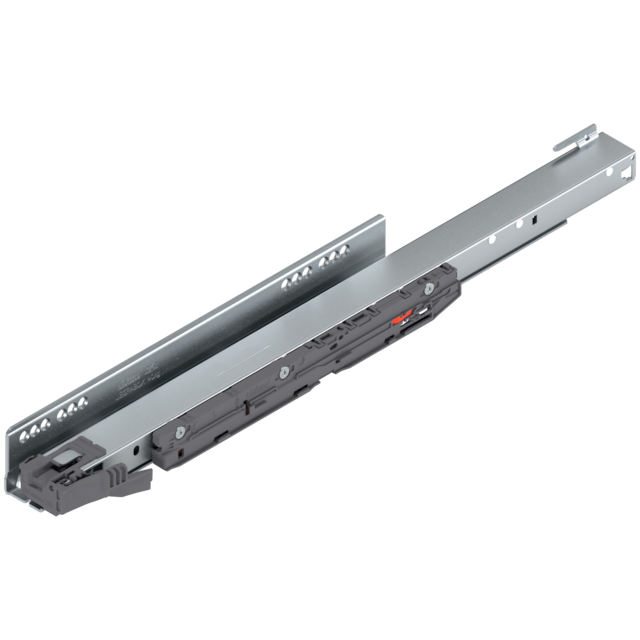

LEGRABOX cabinet profile 500 mm
LEGRABOX cabinet profile Integrated BLUMOTION/suitable for TIP-ON BLUMOTION/suitable for SERVO-DRIVE, full extension, 40 kg, NL=500 mm, left, Zinc plated
Ident no: 05328927
Part no.: 750.5001S K LI V12 ZN
Box qty: 12 pcs
  • pull-out stop: full extension
  • nominal length: 500 mm
  • dynamic carrying capacity: 40 kg
  • side position: left
  • motion technology: integrated BLUMOTION/suitable for TIP-ON BLUMOTION/suitable for SERVO-DRIVE

LEGRABOX cabinet profile Integrated BLUMOTION/suitable for TIP-ON BLUMOTION/suitable for SERVO-DRIVE, full extension, 40 kg, NL=500 mm, left, Zinc plated

Ident no: 05328927 Part no.: 750.5001S K LI V12 ZN Box qty: 12 pcs
  • pull-out stop: full extension
  • nominal length: 500 mm
  • dynamic carrying capacity: 40 kg
  • side position: left
  • motion technology: integrated BLUMOTION/suitable for TIP-ON BLUMOTION/suitable for SERVO-DRIVE
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
  • handyman Assembly instructions
info Product information expand_more

Product information

The drawer is retracted and extended on the cabinet profiles. The profiles are fitted on the cabinet side and connected to the base of the drawer.
description Technical data expand_more

Technical data

box systems
LEGRABOX
runner system
LEGRABOX
type
cabinet profile
pull-out stop
full extension
nominal length
500 mm
