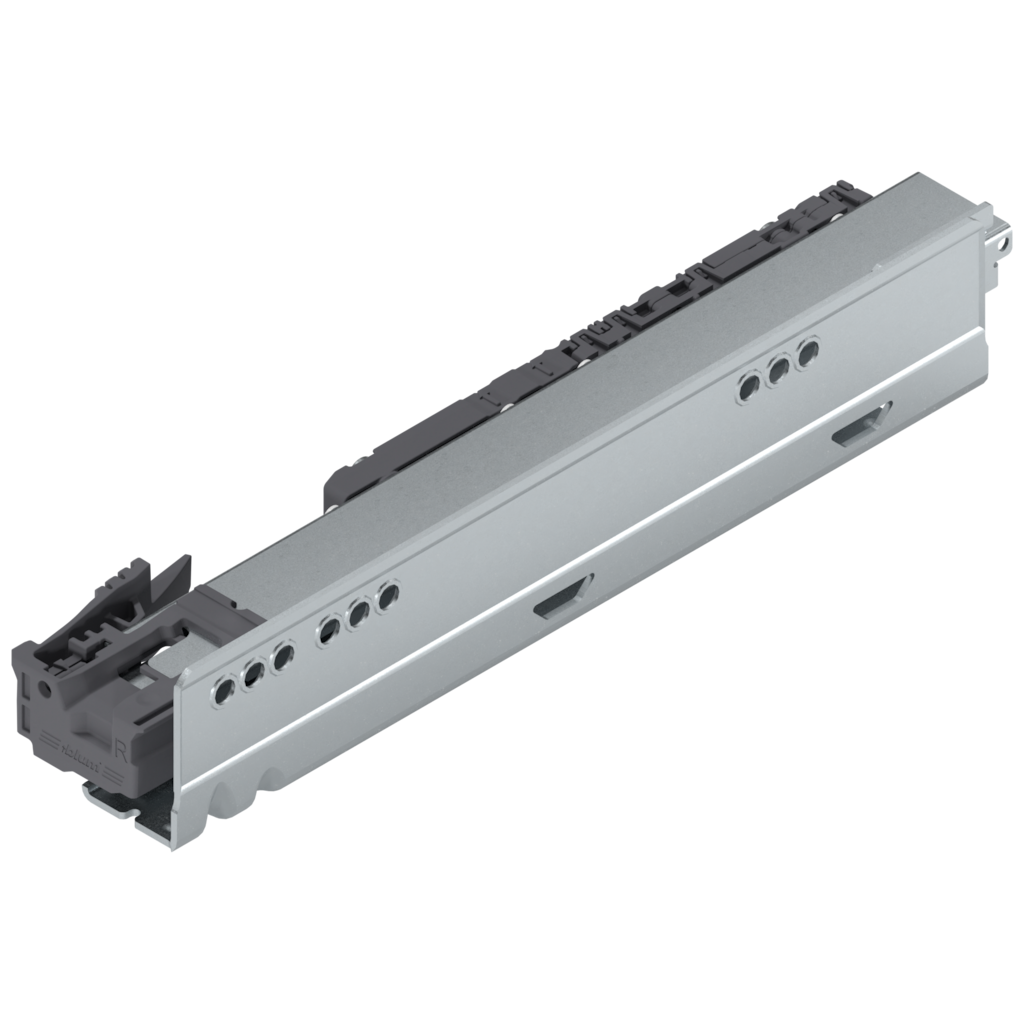

LEGRABOX cabinet profile, full extension, NL 270 mm, right

LEGRABOX cabinet profile, full extension, NL 270 mm, right
LEGRABOX cabinet profile, full extension, NL 270 mm, right
Ident no: 01434539
Part no.: 750.2701S K RE V12 ZN
Box qty: 12 pcs
  • type: cabinet profile
  • dynamic carrying capacity: 40 kg
  • nominal length: 270 mm
  • side position: right
  • motion technology: integrated BLUMOTION/suitable for TIP-ON BLUMOTION/suitable for SERVO-DRIVE
  • pull-out stop: full extension

LEGRABOX cabinet profile, full extension, NL 270 mm, right

  • type: cabinet profile
  • dynamic carrying capacity: 40 kg
  • nominal length: 270 mm
  • side position: right
  • motion technology: integrated BLUMOTION/suitable for TIP-ON BLUMOTION/suitable for SERVO-DRIVE
  • pull-out stop: full extension
Ident no: 01434539 Part no.: 750.2701S K RE V12 ZN Box qty: 12 pcs
error_outline

Please log in to see prices and availability.
info Product information expand_more

Product information

The drawer is retracted and extended on the cabinet profiles. The profiles are fitted on the cabinet side and connected to the base of the drawer.
  • The damping path will be automatically adapted to the motion technology being used
  • Integrated, switchable soft-close BLUMOTION S for extremely soft and effortless closing
  • Excellent sag values, even when fully loaded
  • Also suitable for applications near the floor
  • Easy to enhance with SERVO-DRIVE and TIP-ON BLUMOTION: the drilling positions and fixing positions remain the same, the existing motion technology components are used, installation of TIP-ON BLUMOTION is tool-free
  • Synchronised feather-light glide – for smooth, regular, effortless opening and closing
description Technical data expand_more

Technical data

type
cabinet profile
dynamic carrying capacity
40 kg
nominal length
270 mm
side position
right
motion technology
integrated BLUMOTION/suitable for TIP-ON BLUMOTION/suitable for SERVO-DRIVE
