LEGRABOX chipboard back fixing C

chevron_left Back

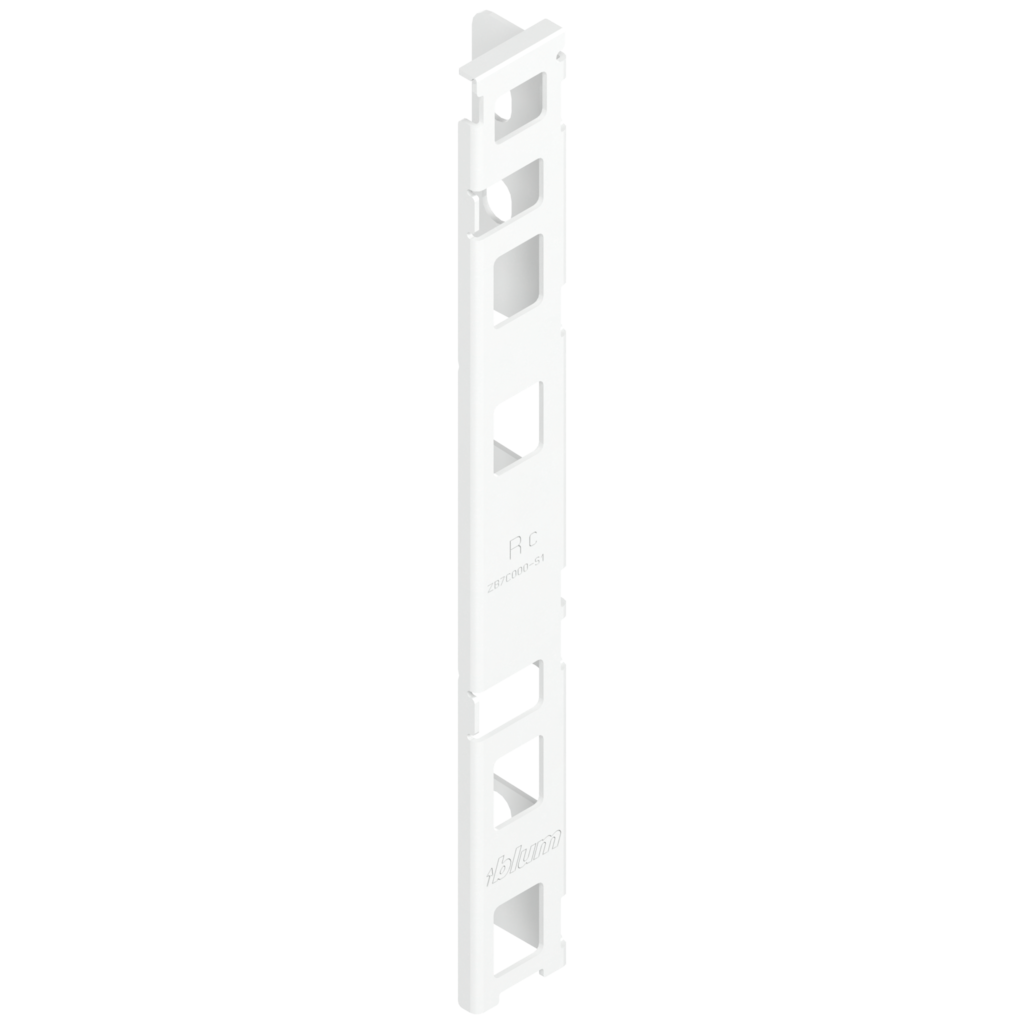

LEGRABOX chipboard back fixing C
LEGRABOX back fixings bracket, height C (193 mm), right, Silk white matt
Ident no: 04903108
Part no.: ZB7C000S HO-R R V48SW-M
Box qty: 48 pcs
  • height: C
  • side position: right
  • colour/surface: silk white matt

LEGRABOX back fixings bracket, height C (193 mm), right, Silk white matt

Ident no: 04903108 Part no.: ZB7C000S HO-R R V48SW-M Box qty: 48 pcs
  • height: C
  • side position: right
  • colour/surface: silk white matt
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

The chipboard back fixing firmly connects the box system drawer side with its chipboard back.
description Technical data expand_more

Technical data

type
chipboard back fixing
suitable for design line
free / pure
height
C
height
146.1 mm
side position
right
