LEGRABOX chipboard back fixing C

chevron_left Back

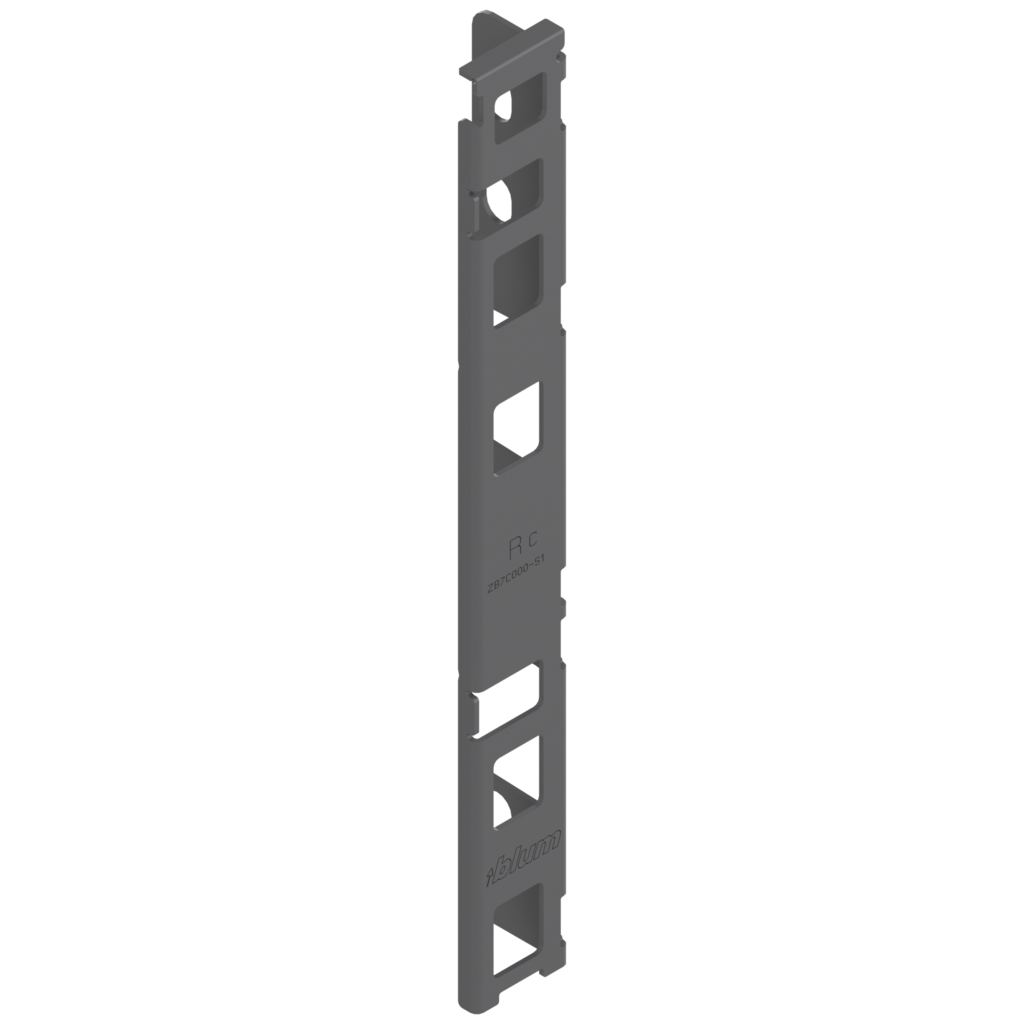

LEGRABOX chipboard back fixing C
LEGRABOX chipboard back fixing C
Ident no: 08148550
Part no.: ZB7C000S HO-R R V48OG-M
Box qty: 48 pcs
  • height: C
  • side position: right
  • colour/surface: orion grey matt
LEGRABOX back fixings bracket, height C (193 mm), right, Orion grey matt
Ident no: 08148550 Part no.: ZB7C000S HO-R R V48OG-M Box qty: 48 pcs
  • height: C
  • side position: right
  • colour/surface: orion grey matt
error_outline

Please log in to see prices and availability.

  • description Technical data
  • CAD/CAM data
description Technical data expand_more

Technical data

type
chipboard back fixing
suitable for design line
free / pure
height
C
height
146.1 mm
side position
right
