LEGRABOX chipboard back fixing K

chevron_left Back

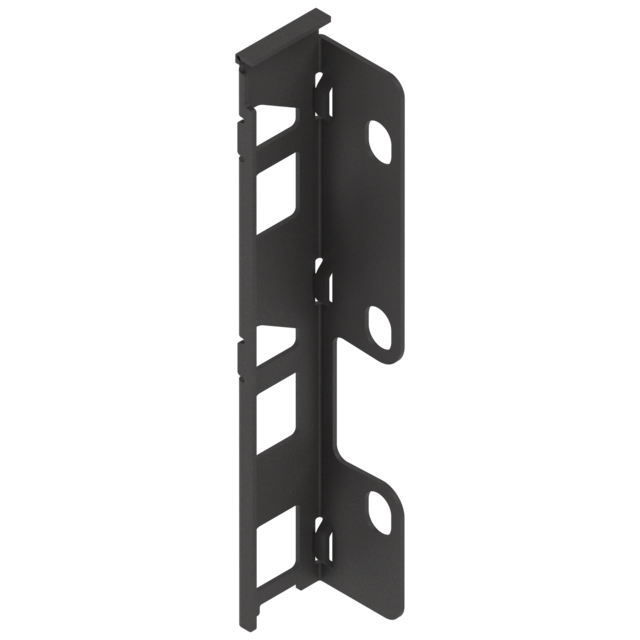

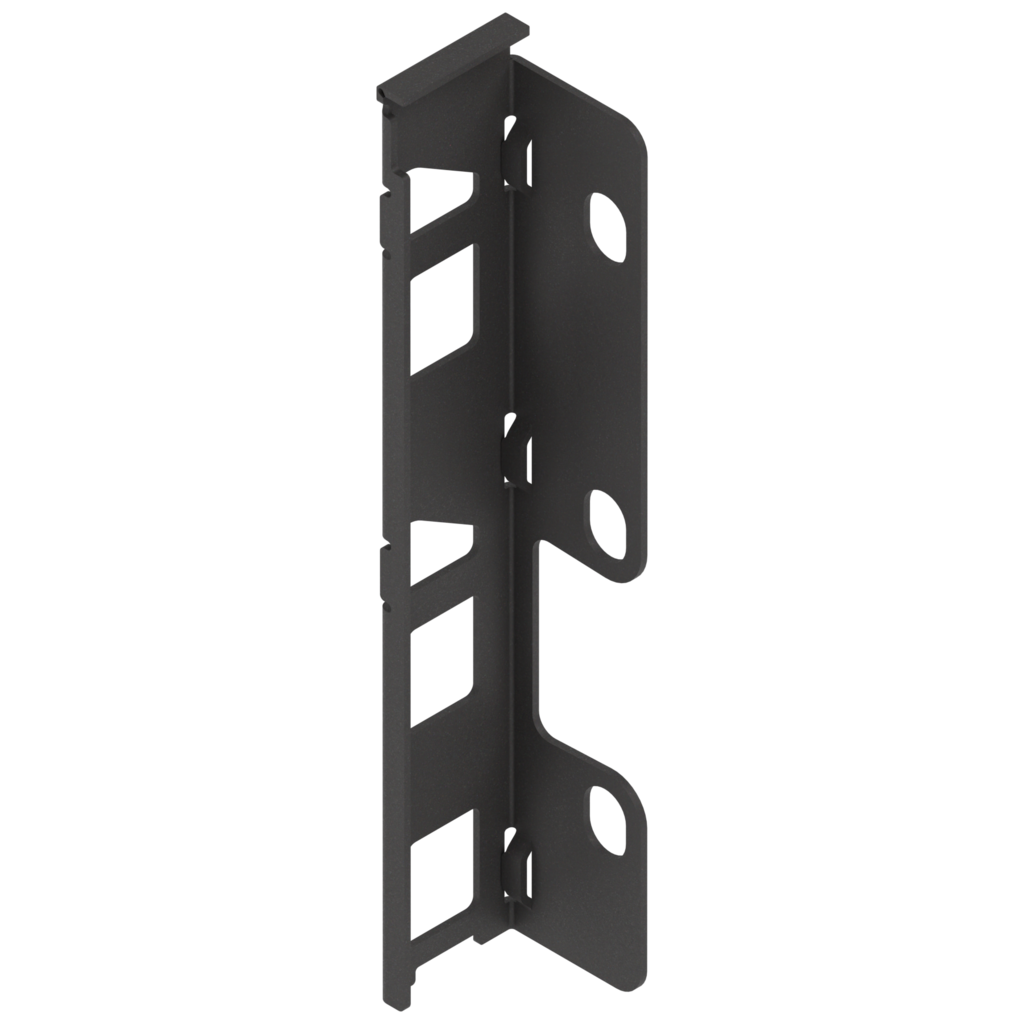

LEGRABOX chipboard back fixing K
LEGRABOX back fixings bracket, height K (144 mm), left, carbon black matt
Ident no: 03189572
Part no.: ZB7K000S HO-R L V48CS-M
Box qty: 48 pcs
  • height: K
  • side position: left
  • colour/surface: carbon black matt

LEGRABOX back fixings bracket, height K (144 mm), left, carbon black matt

Ident no: 03189572 Part no.: ZB7K000S HO-R L V48CS-M Box qty: 48 pcs
  • height: K
  • side position: left
  • colour/surface: carbon black matt
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

The chipboard back fixing firmly connects the box system drawer side with its chipboard back.
description Technical data expand_more

Technical data

type
chipboard back fixing
suitable for design line
pure
height
K
height
98.6 mm
side position
left
