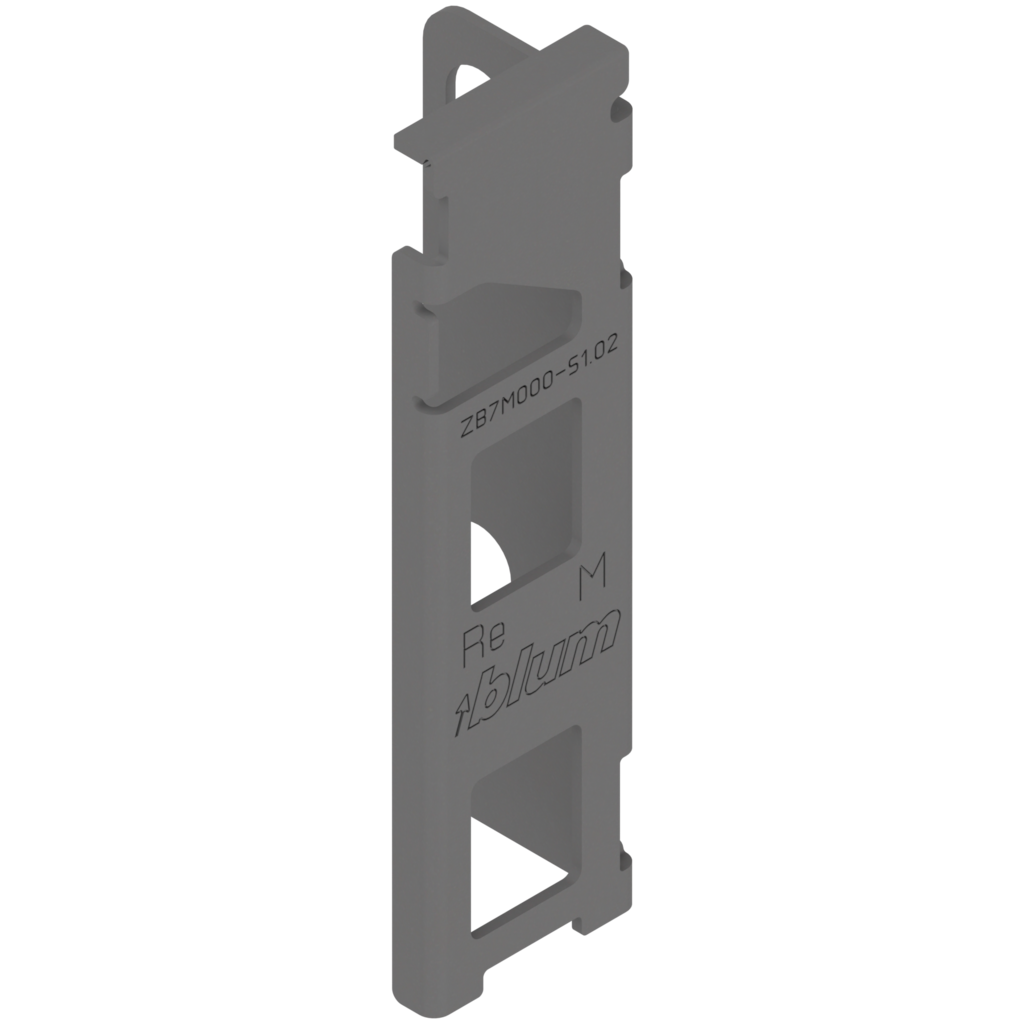

LEGRABOX chipboard back fixing M
LEGRABOX chipboard back fixing M
Ident no: 03168711
Part no.: ZB7M000S HO-R R V48OG-M
Box qty: 48 pcs
  • height: M
  • side position: right
  • colour/surface: orion grey matt
LEGRABOX back fixings bracket, height M (106 mm), right, Orion grey matt
Ident no: 03168711 Part no.: ZB7M000S HO-R R V48OG-M Box qty: 48 pcs
  • height: M
  • side position: right
  • colour/surface: orion grey matt
error_outline

Please log in to see prices and availability.

  • description Technical data
  • CAD/CAM data
description Technical data expand_more

Technical data

type
chipboard back fixing
suitable for design line
pure
height
M
height
60.6 mm
side position
right
