LEGRABOX free drawer side height C

chevron_left Back

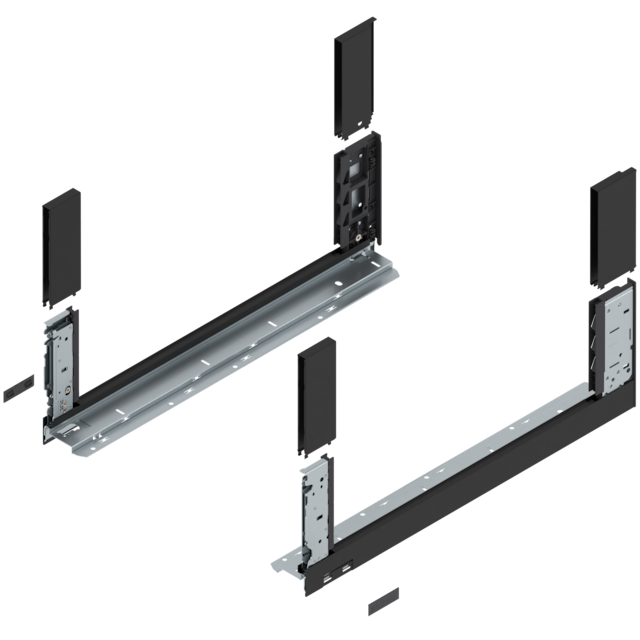

LEGRABOX free drawer side height C
LEGRABOX free drawer side height C
Ident no: 02019121
Part no.: 780C5502S Z R+L V1 CS-M
Box qty: 1 pc
  • colour/surface: carbon black matt
  • height: C
  • nominal length: 550 mm
  • side position: left/right
LEGRABOX free drawer side, height C (177 mm), NL=550 mm, right+left, for LEGRABOX free, carbon black matt
Ident no: 02019121 Part no.: 780C5502S Z R+L V1 CS-M Box qty: 1 pc
  • colour/surface: carbon black matt
  • height: C
  • nominal length: 550 mm
  • side position: left/right
error_outline

Please log in to see prices and availability.

  • info Product information
  • description Technical data
  • CAD/CAM data
  • handyman Assembly instructions
info Product information expand_more

Product information

Drawer sides are the metal side panels of a pull-out. The drawer sides of LEGRABOX free open up many design possibilities and set a strong visual tone with design elements made from glass, wood, leather, stone or other materials.
description Technical data expand_more

Technical data

box systems
LEGRABOX free
type
drawer side
suitable for design line
free
material
steel
colour/surface
carbon black matt
