LEGRABOX free drawer side height C

chevron_left Back
LEGRABOX free drawer side height C
LEGRABOX free drawer side height C
Ident no: 08822923
Part no.: 780C5002S Z R+L V1 OG-M
Box qty: 1 pc
  • colour/surface: orion grey matt
  • height: C
  • nominal length: 500 mm
  • side position: left/right

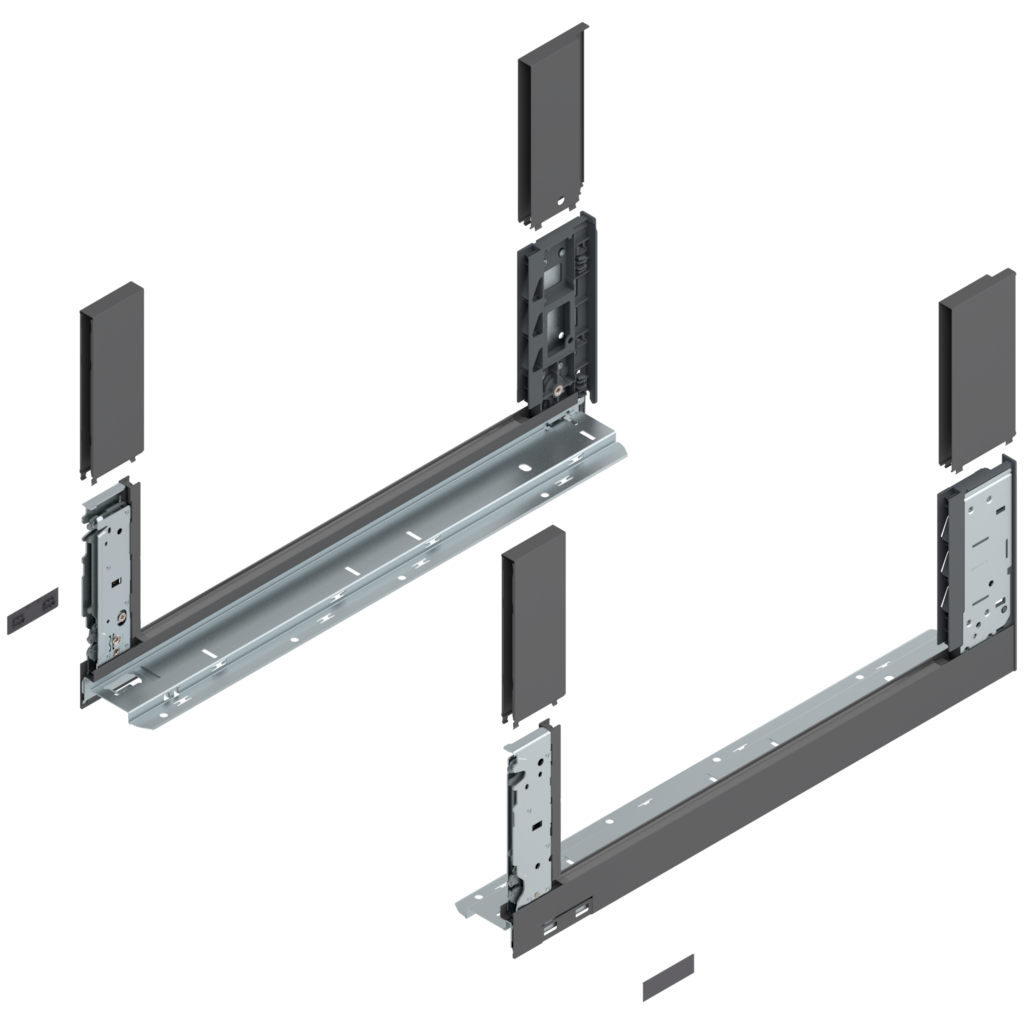

LEGRABOX free drawer side, height C (177 mm), NL=500 mm, right+left, for LEGRABOX free, Orion grey matt
Ident no: 08822923 Part no.: 780C5002S Z R+L V1 OG-M Box qty: 1 pc
  • colour/surface: orion grey matt
  • height: C
  • nominal length: 500 mm
  • side position: left/right
error_outline

Please log in to see prices and availability.

  • info Product information
  • description Technical data
  • CAD/CAM data
  • handyman Assembly instructions
info Product information expand_more

Product information

Drawer sides are the metal side panels of a pull-out. The drawer sides of LEGRABOX free open up many design possibilities and set a strong visual tone with design elements made from glass, wood, leather, stone or other materials.
description Technical data expand_more

Technical data

box systems
LEGRABOX free
type
drawer side
suitable for design line
free
material
steel
colour/surface
orion grey matt
