LEGRABOX front fixing bracket M

chevron_left Back

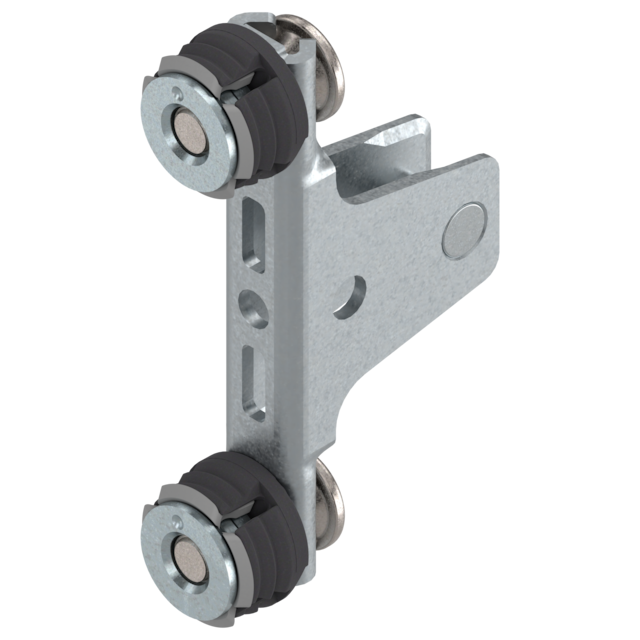

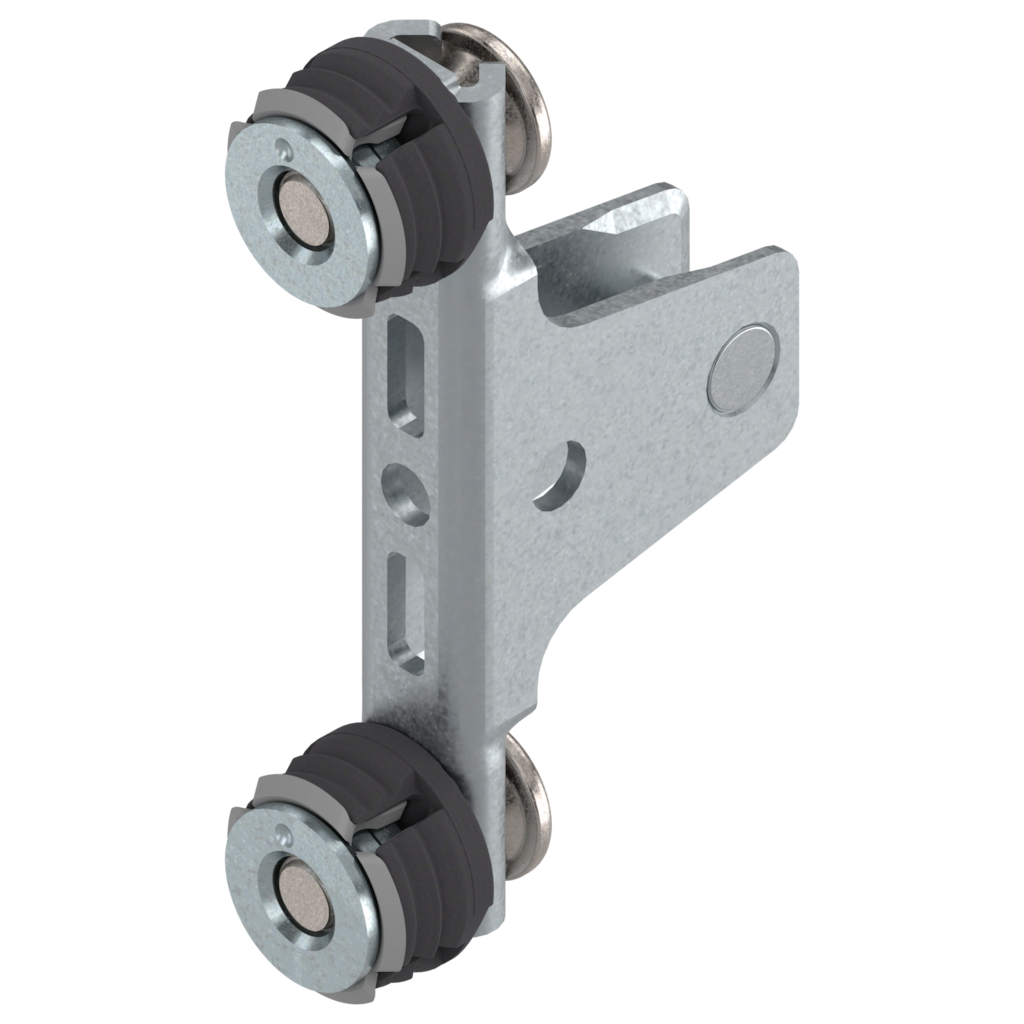

LEGRABOX front fixing bracket M
LEGRABOX front fixing bracket M
Ident no: 01598535
Part no.: ZF7M70T2 FROB V100 ZN
Box qty: 100 pcs
  • Front fixing: with EXPANDO T
  • height: M
  • side position: left/right
LEGRABOX front fixing bracket, height M, EXPANDO T, symmetrical, for LEGRABOX free/LEGRABOX pure, Zinc plated
Ident no: 01598535 Part no.: ZF7M70T2 FROB V100 ZN Box qty: 100 pcs
  • Front fixing: with EXPANDO T
  • height: M
  • side position: left/right
error_outline

Please log in to see prices and availability.

  • description Technical data
  • CAD/CAM data
description Technical data expand_more

Technical data

type
front fixing bracket
box systems
LEGRABOX
suitable for design line
pure
Front fixing
with EXPANDO T
height
60.6 mm
