LEGRABOX front piece height M

chevron_left Back
LEGRABOX front piece height M

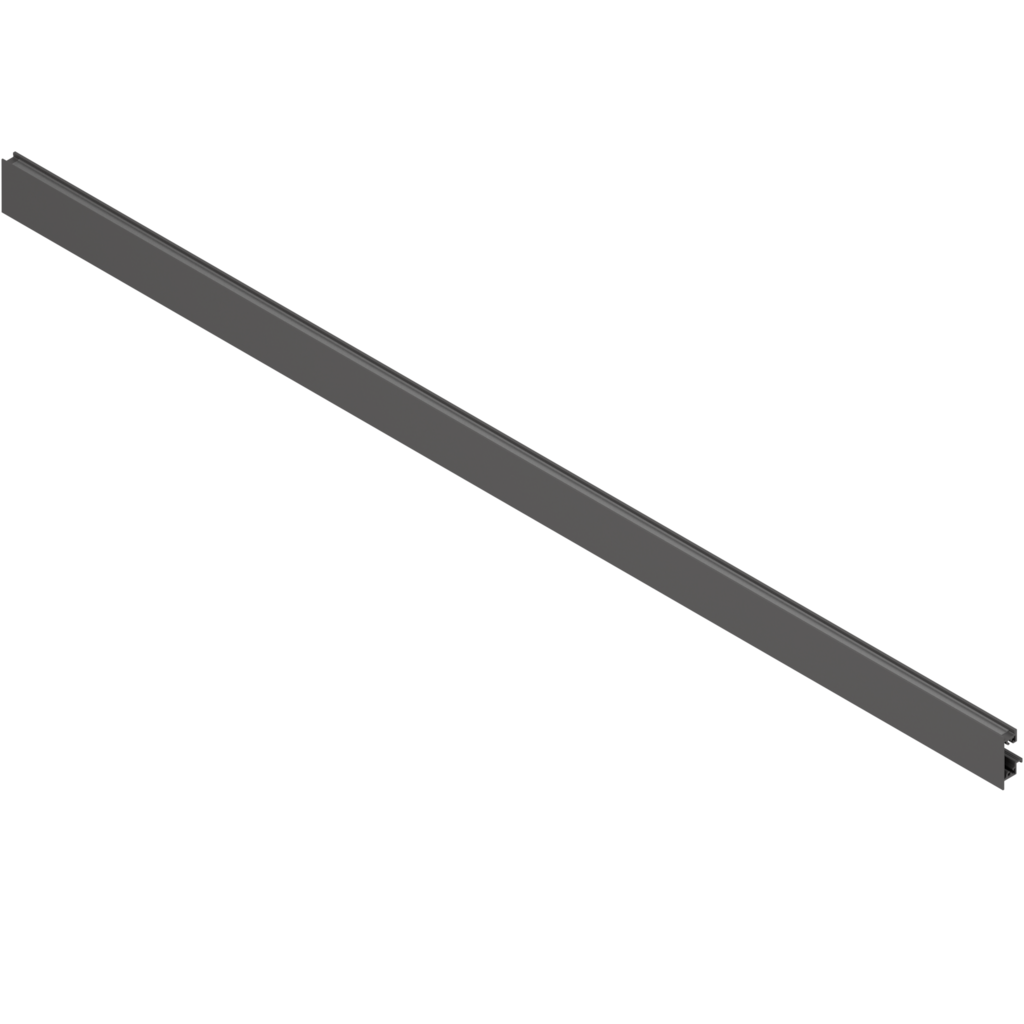

LEGRABOX Front section, with groove for design element, for inner pull-out, CW=1200 mm, for cutting to size, carbon black matt
Ident no: 09004304
Part no.: ZV7.1043MN1VORD-ST 24CS-M
Box qty: 24 pcs
  • type: front piece
  • height: M
  • colour/surface: carbon black matt
  • height: 48.05 mm
  • length: 1043.2 mm
  • suitable for front design: front design element, high / front design element, low

LEGRABOX Front section, with groove for design element, for inner pull-out, CW=1200 mm, for cutting to size, carbon black matt

Ident no: 09004304 Part no.: ZV7.1043MN1VORD-ST 24CS-M Box qty: 24 pcs
  • type: front piece
  • height: M
  • colour/surface: carbon black matt
  • height: 48.05 mm
  • length: 1043.2 mm
  • suitable for front design: front design element, high / front design element, low
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

The base element of the front of inner pull-outs is the front piece. This can be combined with a glass design element.
description Technical data expand_more

Technical data

type
front piece
suitable for design line
free / pure
height
M
internal cabinet width
0-1170.2 mm
material
aluminium
