LEGRABOX front piece set height C

chevron_left Back
LEGRABOX front piece set height C
LEGRABOX front piece set height C
Ident no: 05767017
Part no.: ZV7.1043C01FH-3C NZV1CS-M
Box qty: 1 pc
  • type: front piece set
  • height: C
  • length: 1043.2 mm
  • colour/surface: carbon black matt
  • height: 98.35 mm
  • suitable for front design: gallery front / closed front piece

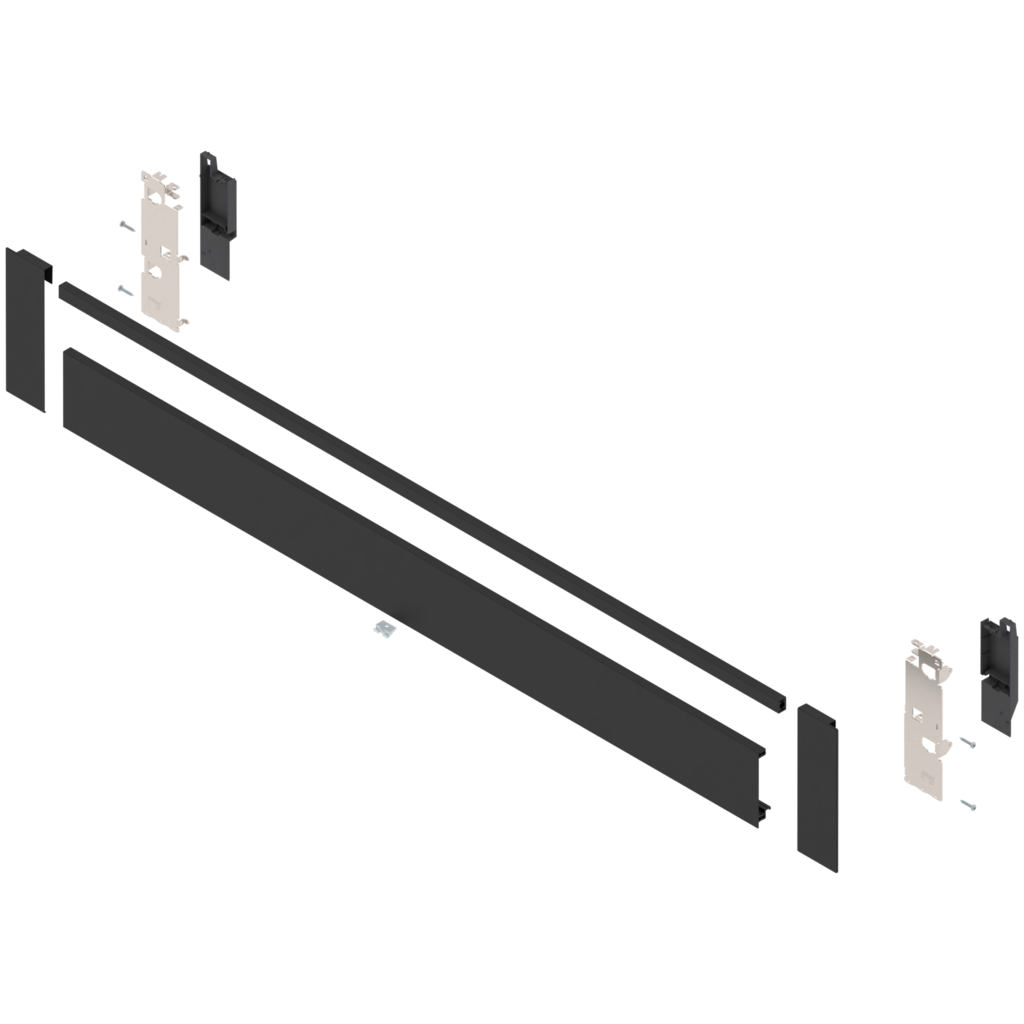

LEGRABOX front set for inner pull-out with cross gallery, height C, CW=1200 mm, carbon black matt
Ident no: 05767017 Part no.: ZV7.1043C01FH-3C NZV1CS-M Box qty: 1 pc
  • type: front piece set
  • height: C
  • length: 1043.2 mm
  • colour/surface: carbon black matt
  • height: 98.35 mm
  • suitable for front design: gallery front / closed front piece
error_outline

Please log in to see prices and availability.

  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

The base element of the front of inner pull-outs comprises the front piece with all further components in this set. The front piece is fixed to the drawer sides.
description Technical data expand_more

Technical data

type
front piece set
suitable for design line
free / pure
height
C
length
1043.2 mm
internal cabinet width
0-1170.2 mm
CAD/CAM data expand_more
Almost there!

Almost there!

Register now and get free CAD/CAM data download for this product.
