LEGRABOX gap compensation for low design element for insertion

chevron_left Back

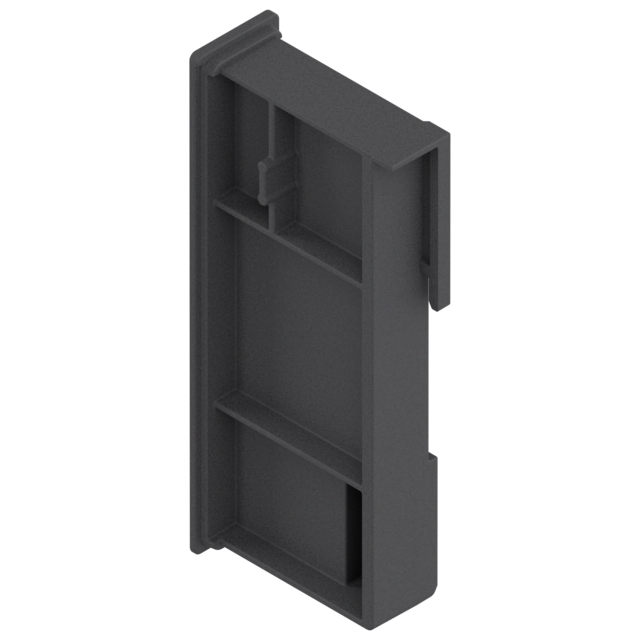

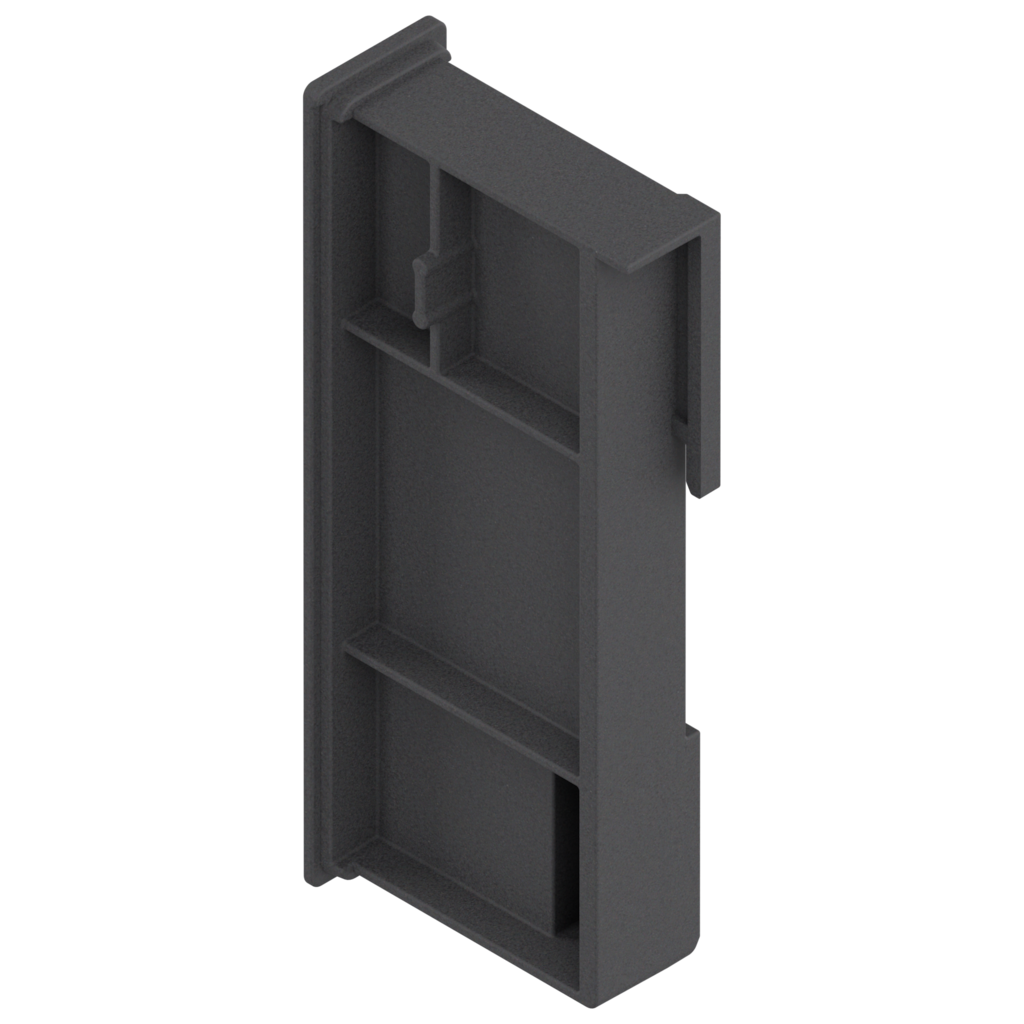

LEGRABOX gap compensation for low design element for insertion
LEGRABOX gap compensation for low design element for insertion
Ident no: 01008950
Part no.: ZI7.4C09 D-AU R 150CS-M
Box qty: 150 pcs
  • colour/surface: carbon black matt
  • side position: right
LEGRABOX distance adjustment, right, Inner pull-out, carbon black matt
Ident no: 01008950 Part no.: ZI7.4C09 D-AU R 150CS-M Box qty: 150 pcs
  • colour/surface: carbon black matt
  • side position: right
error_outline

Please log in to see prices and availability.

  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Gap compensation is used for inner pull-outs that use a front piece with a low design element. The gap compensation fills the gap between the front fixing and front fixing blind front above the inserted design element. This results in a completely closed front piece, while the front fixing cover cap can also be optimally fixed in place.
description Technical data expand_more

Technical data

type
gap compensation for low design element
suitable for design line
free / pure
height
13.25 mm
length
70 mm
material
nylon
