LEGRABOX inner front fixing C

chevron_left Back

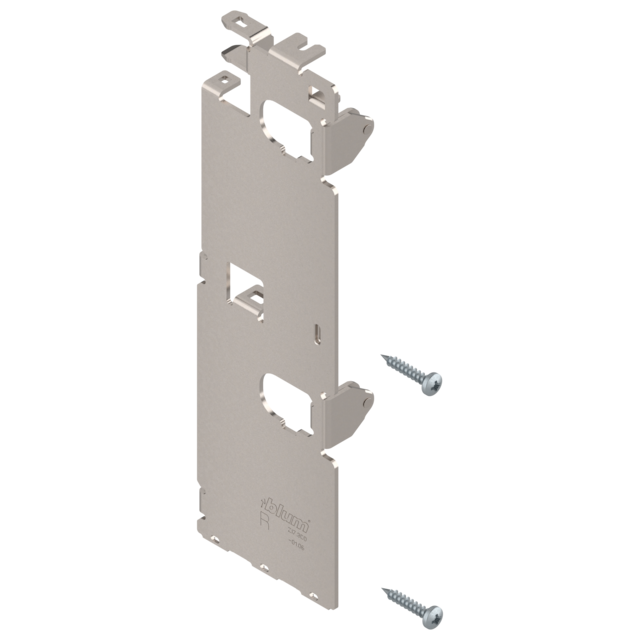

LEGRABOX inner front fixing C
LEGRABOX inner front fixing C
Ident no: 09803842
Part no.: ZI7.3C01.01FRO-H R 50 NI
Box qty: 50 pcs
  • type: inner front fixing
  • suitable for front design: gallery front
  • height: C
  • colour/surface: nickel plated
  • side position: right
LEGRABOX front fixing, height C, for inner pull-out with gallery, right, Nickel plated
Ident no: 09803842 Part no.: ZI7.3C01.01FRO-H R 50 NI Box qty: 50 pcs
  • type: inner front fixing
  • suitable for front design: gallery front
  • height: C
  • colour/surface: nickel plated
  • side position: right
error_outline

Please log in to see prices and availability.

  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

The front fixing connects all the components of an inner pull-out front and ensures that the front is securely fixed to the drawer sides.
description Technical data expand_more

Technical data

type
inner front fixing
suitable for design line
free / pure
suitable for front design
gallery front
height
C
material
steel
