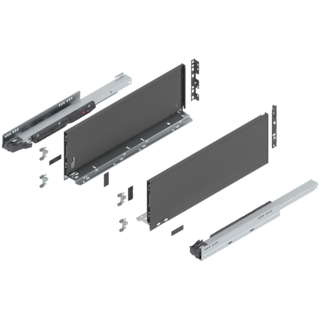

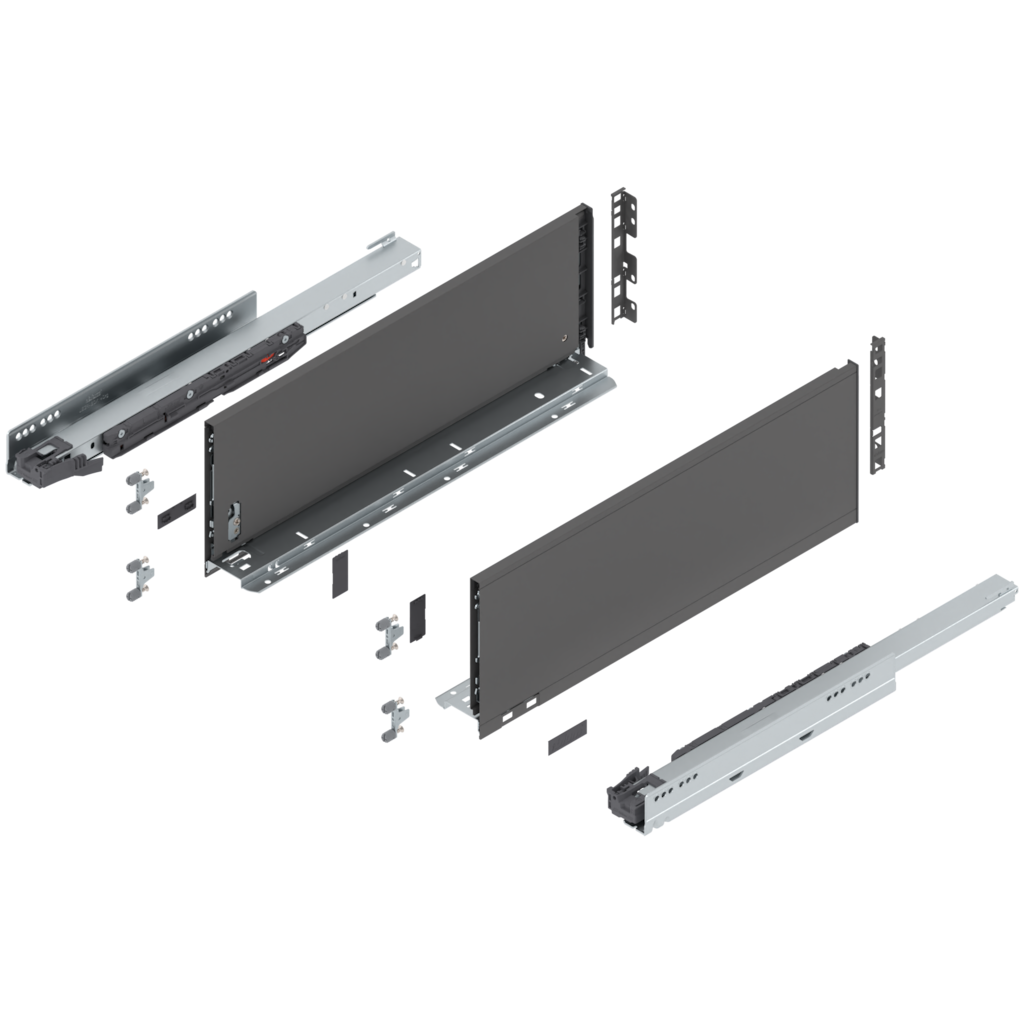

LEGRABOX pure complete set drawer height C (193.0 mm)

chevron_left Back
LEGRABOX pure complete set drawer height C (193.0 mm) LEGRABOX pure complete set drawer height C (193.0 mm)
LEGRABOX pure complete set drawer height C (193.0 mm)
LEGRABOX pure complete set drawer height C (193.0 mm)
LEGRABOX pure complete set drawer height C (193.0 mm)
Ident no: 38010186
Part no.: 770C50S0S FAZ C NZV1OG-M
Box qty: 1 pc
  • type: complete set
  • pull-out type: drawer
  • colour/surface: orion grey matt
  • height: C (193.0 mm)
  • nominal length: 500 mm
  • dynamic carrying capacity: 40 kg
  • motion technology: integrated BLUMOTION/suitable for TIP-ON BLUMOTION/suitable for SERVO-DRIVE
  • for side panel design: drawer side
  • front design: wooden front
LEGRABOX pure Integrated BLUMOTION/suitable for TIP-ON BLUMOTION/suitable for SERVO-DRIVE, high fronted pull-out, height C (193.0 mm), 40 kg, NL=500 mm, Orion grey matt
Ident no: 38010186 Part no.: 770C50S0S FAZ C NZV1OG-M Box qty: 1 pc
  • type: complete set
  • pull-out type: drawer
  • colour/surface: orion grey matt
  • height: C (193.0 mm)
  • nominal length: 500 mm
  • dynamic carrying capacity: 40 kg
  • motion technology: integrated BLUMOTION/suitable for TIP-ON BLUMOTION/suitable for SERVO-DRIVE
  • for side panel design: drawer side
  • front design: wooden front
error_outline

Please log in to see prices and availability.

  • description Technical data
  • CAD/CAM data
  • handyman Assembly instructions
description Technical data expand_more

Technical data

type
complete set
box systems
LEGRABOX pure
suitable for design line
pure
pull-out type
drawer
material
steel
