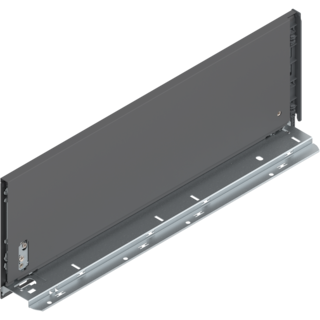

LEGRABOX pure drawer side Height C, left

LEGRABOX pure drawer side Height C, left LEGRABOX pure drawer side Height C, left
LEGRABOX pure drawer side Height C, left
LEGRABOX pure drawer side Height C, left
LEGRABOX pure drawer side Height C, left
Ident no: 08529522
Part no: 770C5002S Z LI V10OG-M
Box qty: 10 pcs

LEGRABOX pure drawer side Height C, left

nominal length
expand_more
colour/surface
expand_more
Ident no: 08529522 Part no: 770C5002S Z LI V10OG-M Box qty: 10 pcs
error_outline

Please log in to see prices and availability.
info Product information expand_more

Product information

Drawer sides are the metal side panels of a drawer. The LEGRABOX pure drawer side offers numerous design options, with its elegant and smooth metal surface as well as characteristic design line on the outer side.
  • Just 12.8 mm thick, straight on the inside and outside
  • with holding position: one person can safely and conveniently clip on or remove the front, including wide fronts and when the drawer is already fitted
  • Blends discreetly into cabinet interiors
  • 3-dimensional front adjustment for a precise and attractive gap layout
  • Own logo and brand name can be printed, lasered or embossed on request for maximum customisation
description Technical data expand_more

Technical data

box systems
LEGRABOX pure
type
drawer side
material
steel
colour/surface
orion grey matt
product height
C
widgets Accessories expand_more

Accessories

Cabinet profiles
Cabinet profiles Recommended
4 items
Chipboard back fixing
Chipboard back fixing Recommended
4 items
Front fixing
Front fixing Recommended
6 items
Front fixing brackets
Front fixing brackets Recommended
3 items
