LEGRABOX TIP-ON BLUMOTION unit 40 kg for sink pull-out

chevron_left Back

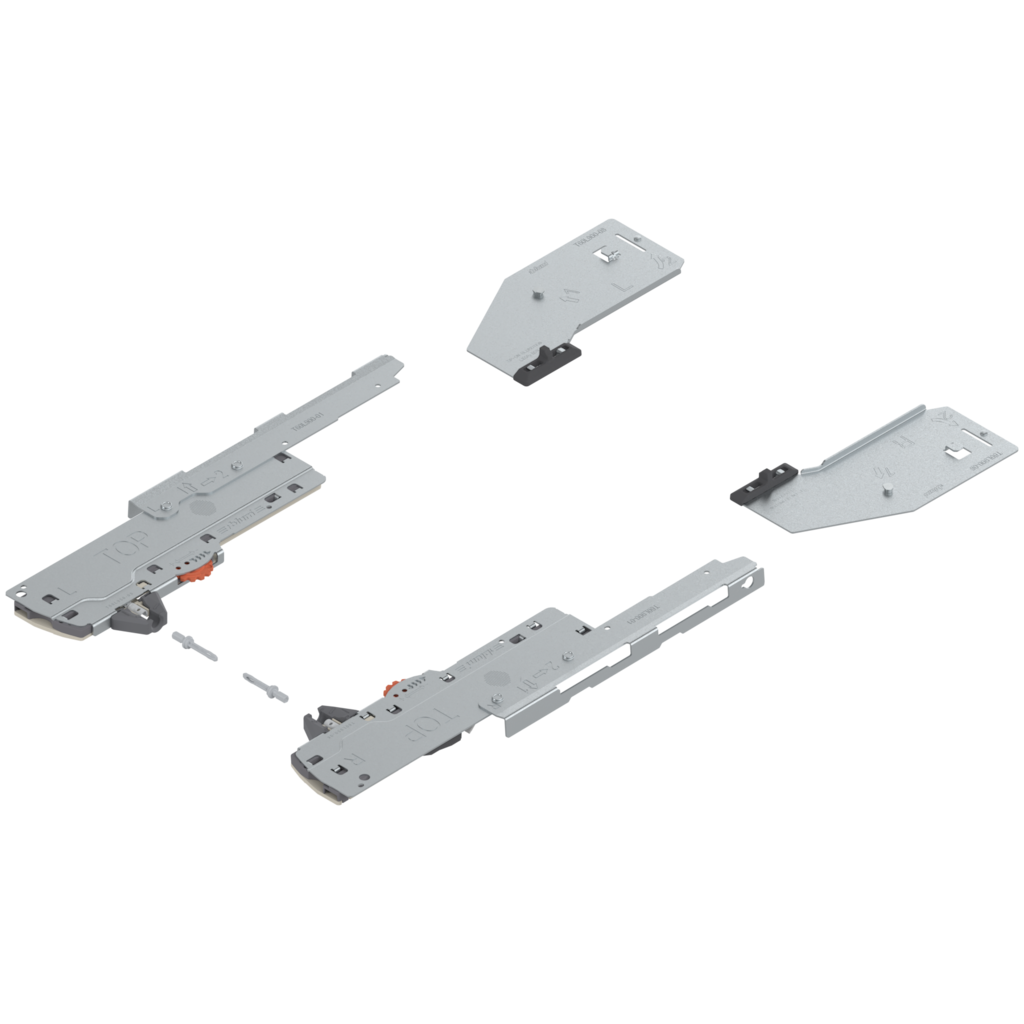

LEGRABOX TIP-ON BLUMOTION unit 40 kg for sink pull-out
Set (TIP-ON BLUMOTION unit + latch + Adapter), for LEGRABOX, Type L3, NL=350-600 mm, Total weight of the pull-out=15–40 kg, right+left, R7037 dust grey
Ident no: 02783745
Part no.: T60L9540 TOB R+LV1R737
Box qty: 1 pc
  • type: TIP-ON BLUMOTION unit
  • type of unit: type L3
  • for total weight of the pull-out: 15 - 40 kg
  • suitable for runner with dynamic carrying capacity: 40 kg
  • suitable for nominal length range: 350 - 600 mm
  • side position: left/right
  • material: nylon/steel

Set (TIP-ON BLUMOTION unit + latch + Adapter), for LEGRABOX, Type L3, NL=350-600 mm, Total weight of the pull-out=15–40 kg, right+left, R7037 dust grey

Ident no: 02783745 Part no.: T60L9540 TOB R+LV1R737 Box qty: 1 pc
  • type: TIP-ON BLUMOTION unit
  • type of unit: type L3
  • for total weight of the pull-out: 15 - 40 kg
  • suitable for runner with dynamic carrying capacity: 40 kg
  • suitable for nominal length range: 350 - 600 mm
  • side position: left/right
  • material: nylon/steel
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
  • handyman Assembly instructions
info Product information expand_more

Product information

Eine TIP-ON BLUMOTION-Einheit kombiniert die mechanische Öffnungsunterstützung TIP-ON mit der gedämpften Schließbewegung von BLUMOTION. Diese innovative Einheit ermöglicht es, grifflose Möbel durch leichtes Antippen zu öffnen sowie sanft und leise zu schließen. Die TIP-ON BLUMOTION Einheit ist auch Bestandteil der TIP-ON BLUMOTION-Synchronisierung von Auszügen. Der Einsatz einer Synchronisierung vergrößert den Auslösebereich der Front und verbessert damit die mechanischen Öffnungsunterstützung, insbesondere bei breiten Auszügen. Sie ist demnach zu empfehlen.
description Technical data expand_more

Technical data

type
TIP-ON BLUMOTION unit
type of unit
type L3
suitable for design line
free / pure
for total weight of the pull-out
15 - 40 kg
suitable for runner with dynamic carrying capacity
40 kg
CAD/CAM data expand_more
Almost there!

Almost there!

Register now and get free CAD/CAM data download for this product.

person Log in Register now
handyman Assembly instructions expand_more
