LEGRABOX/MERIVOBOX chipboard back adapter C

chevron_left Back

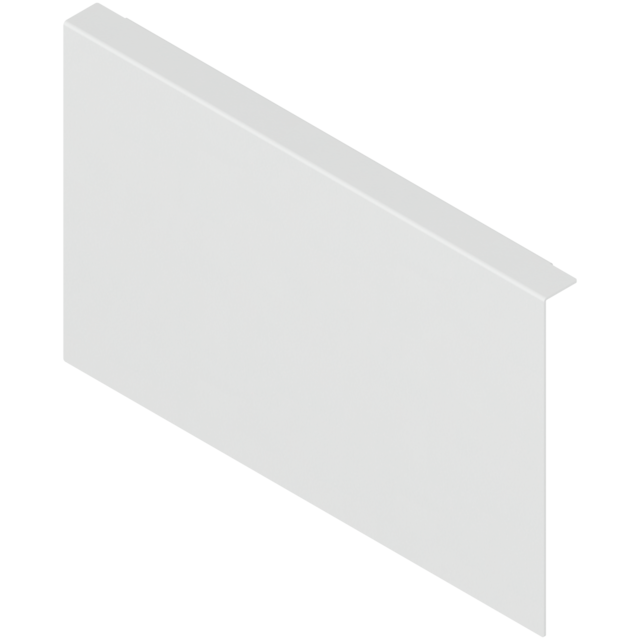

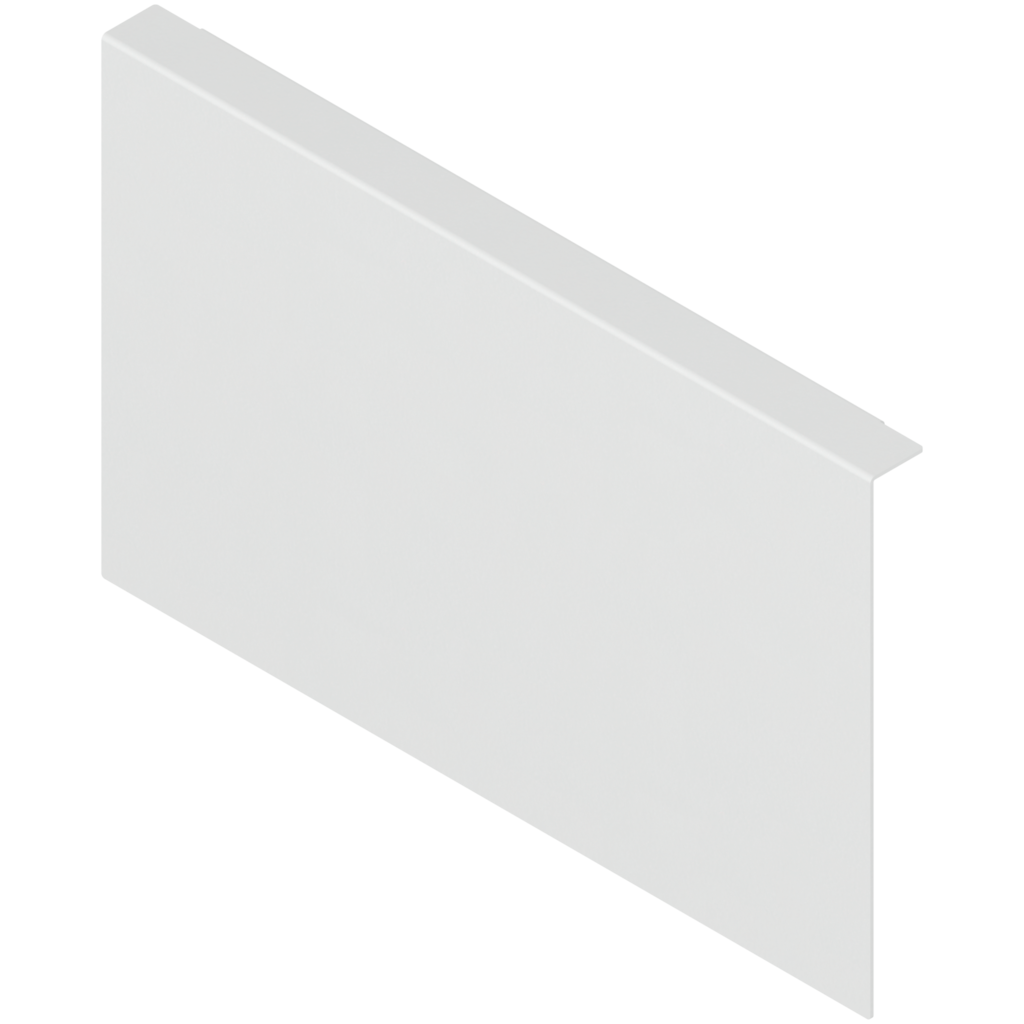

LEGRABOX/MERIVOBOX chipboard back adapter C
LEGRABOX/MERIVOBOX chipboard back adapter C
Ident no: 01135009
Part no.: ZC7A0U0C HRW-AD 12 SW-M
Box qty: 12 pcs
  • colour/surface: silk white matt
AMBIA-LINE chipboard back adapter, for LEGRABOX/MERIVOBOX high fronted pull-out height C, steel, Silk white matt
Ident no: 01135009 Part no.: ZC7A0U0C HRW-AD 12 SW-M Box qty: 12 pcs
  • colour/surface: silk white matt
error_outline

Please log in to see prices and availability.

  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

The chipboard back adapter is needed to attach the steel design version of the AMBIA-LINE inner dividing system to the chipboard back. It is clamped to the chipboard back and the AMBIA-LINE steel frames can be secured magnetically.
description Technical data expand_more

Technical data

type
chipboard back adapter
colour/surface
silk white matt
height
147.5 mm
length
241.5 mm
inner dividing system
LEGRABOX/MERIVOBOX
