LEGRABOX/MERIVOBOX chipboard back adapter C

chevron_left Back

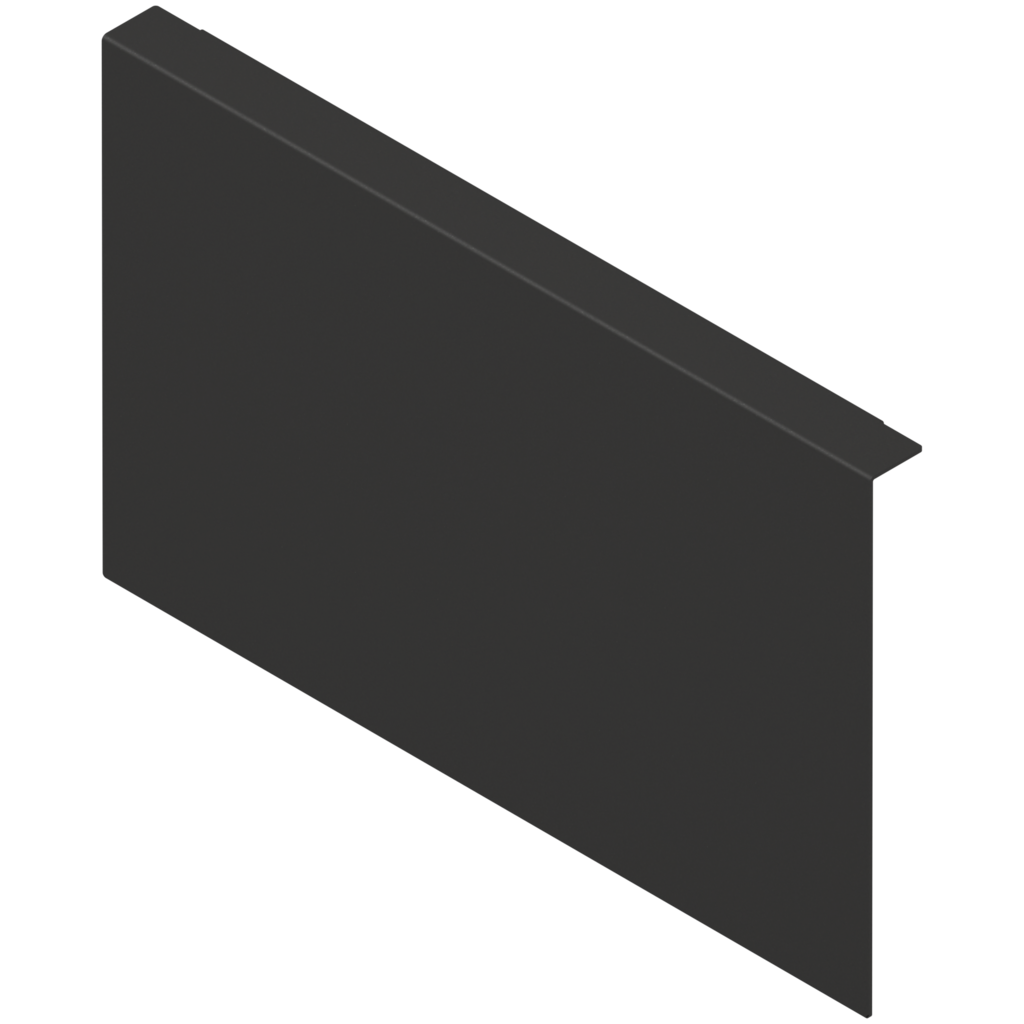

LEGRABOX/MERIVOBOX chipboard back adapter C
LEGRABOX/MERIVOBOX chipboard back adapter C
Ident no.: 09841441
Part no.: ZC7A0U0C HRW-AD 12 CS-M
Box qty: 12 pcs
  • colour/surface: carbon black matt
AMBIA-LINE chipboard back adapter, for LEGRABOX/MERIVOBOX high fronted pull-out height C, steel, carbon black matt
Ident no.: 09841441 Part no.: ZC7A0U0C HRW-AD 12 CS-M Box qty: 12 pcs
  • colour/surface: carbon black matt
error_outline

Please log in to see prices and availability.
  • build Technical data
  • CAD/CAM data
build Technical data expand_more

Technical data

type
chipboard back adapter
colour/surface
carbon black matt
height
147.5 mm
length
241.5 mm
inner dividing system
LEGRABOX/MERIVOBOX
