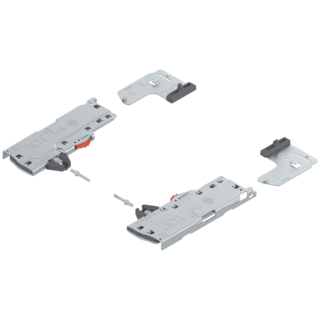

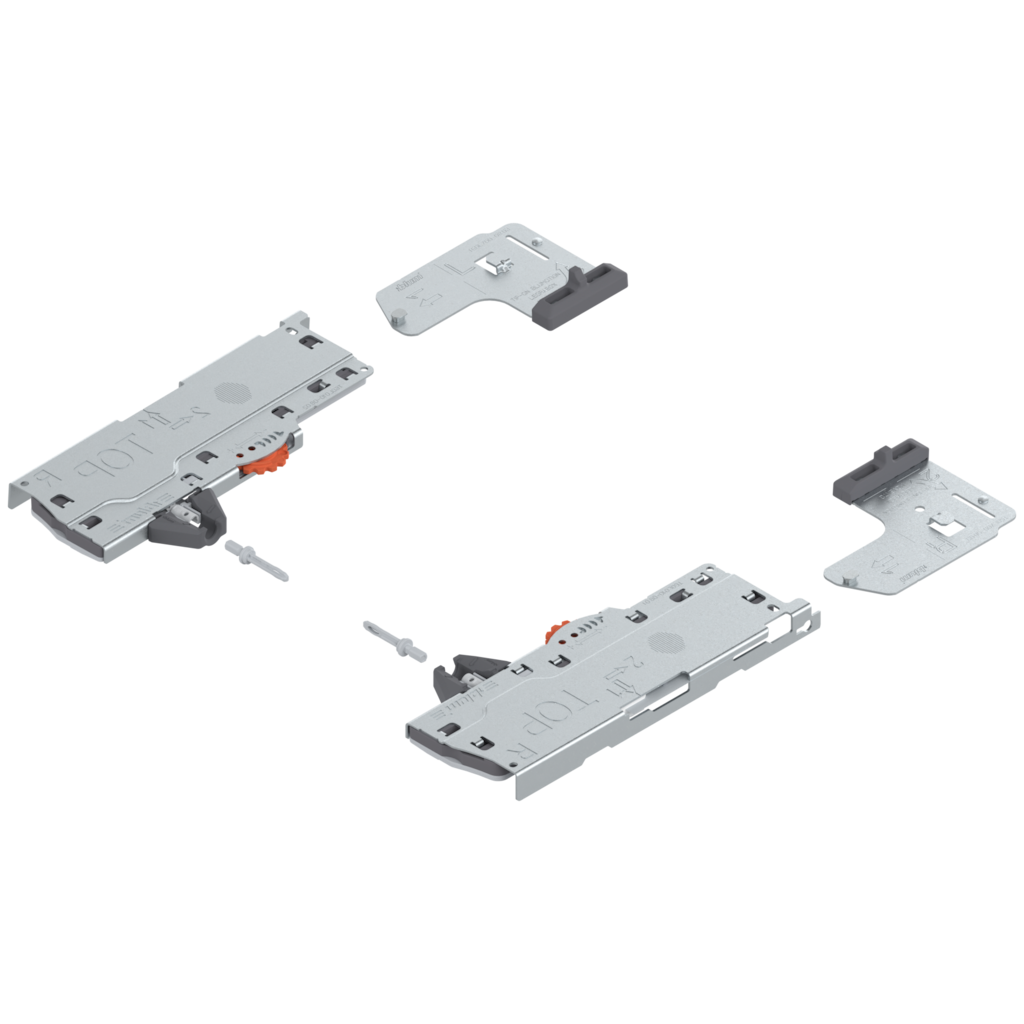

LEGRABOX/MOVENTO TIP-ON BLUMOTION unit 40 kg

chevron_left Back
LEGRABOX/MOVENTO TIP-ON BLUMOTION unit 40 kg LEGRABOX/MOVENTO TIP-ON BLUMOTION unit 40 kg
LEGRABOX/MOVENTO TIP-ON BLUMOTION unit 40 kg
LEGRABOX/MOVENTO TIP-ON BLUMOTION unit 40 kg
LEGRABOX/MOVENTO TIP-ON BLUMOTION unit 40 kg
Ident no.: 08743540
Part no.: T60L7140 TOB R+LV1R735
Box qty: 1 pc
  • type: TIP-ON BLUMOTION unit
  • type of unit: type S1
  • for total weight of the pull-out: 10 - 20 kg
  • suitable for runner with dynamic carrying capacity: 40 kg
  • suitable for nominal length range: 270 - 320 mm
  • side position: left/right
  • material: nylon/steel
Set (TIP-ON BLUMOTION unit + latch + Adapter), for LEGRABOX, for MOVENTO, Type S1, NL=270-320 mm, Total weight of the pull-out=10-20 kg, right+left, R7035 light grey
Ident no.: 08743540 Part no.: T60L7140 TOB R+LV1R735 Box qty: 1 pc
  • type: TIP-ON BLUMOTION unit
  • type of unit: type S1
  • for total weight of the pull-out: 10 - 20 kg
  • suitable for runner with dynamic carrying capacity: 40 kg
  • suitable for nominal length range: 270 - 320 mm
  • side position: left/right
  • material: nylon/steel
error_outline

Please log in to see prices and availability.
  • build Technical data
  • CAD/CAM data
  • handyman Assembly instructions
build Technical data expand_more

Technical data

type
TIP-ON BLUMOTION unit
type of unit
type S1
suitable for design line
free / pure
for total weight of the pull-out
10 - 20 kg
suitable for runner with dynamic carrying capacity
40 kg
