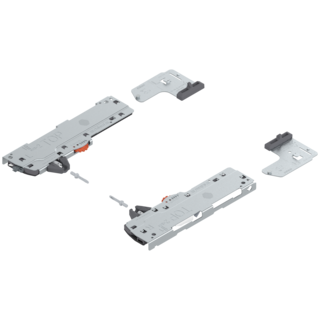

LEGRABOX/MOVENTO TIP-ON BLUMOTION unit 70 kg

chevron_left Back
LEGRABOX/MOVENTO TIP-ON BLUMOTION unit 70 kg LEGRABOX/MOVENTO TIP-ON BLUMOTION unit 70 kg
LEGRABOX/MOVENTO TIP-ON BLUMOTION unit 70 kg
LEGRABOX/MOVENTO TIP-ON BLUMOTION unit 70 kg
LEGRABOX/MOVENTO TIP-ON BLUMOTION unit 70 kg
Ident no.: 06335560
Part no.: T60L7570 TOB R+LV1 S
Box qty: 1 pc
  • type: TIP-ON BLUMOTION unit
  • type of unit: type L5
  • for total weight of the pull-out: 35 - 70 kg
  • suitable for runner with dynamic carrying capacity: 70 kg
  • suitable for nominal length range: 450 - 750 mm
  • side position: left/right
  • material: nylon/steel
Set (TIP-ON BLUMOTION unit + latch + Adapter), for LEGRABOX, for MOVENTO, Type L5, NL=450-750 mm, Total weight of the pull-out=35-70 kg, right+left, Black
Ident no.: 06335560 Part no.: T60L7570 TOB R+LV1 S Box qty: 1 pc
  • type: TIP-ON BLUMOTION unit
  • type of unit: type L5
  • for total weight of the pull-out: 35 - 70 kg
  • suitable for runner with dynamic carrying capacity: 70 kg
  • suitable for nominal length range: 450 - 750 mm
  • side position: left/right
  • material: nylon/steel
error_outline

Please log in to see prices and availability.
  • build Technical data
  • CAD/CAM data
  • handyman Assembly instructions
build Technical data expand_more

Technical data

type
TIP-ON BLUMOTION unit
type of unit
type L5
suitable for design line
free / pure
for total weight of the pull-out
35 - 70 kg
suitable for runner with dynamic carrying capacity
70 kg
