Lift mechanism

To select the correct lift mechanism, you need to know the cabinet height and the weight of the front (including the handle).

Example calculation of the correct lift mechanism as per the table:

Cabinet height (KH) = 600 mm

Weight of front including handle = 10 kg

With this cabinet height and front weight, the table shows that the appropriate choice would be the AVENTOS HL on lift mechanism E.

If you do not have a precise round value for the cabinet height, simply round the value as shown:

KH = 602 mm --> 600 mm

KH = 603 mm --> 605 mm

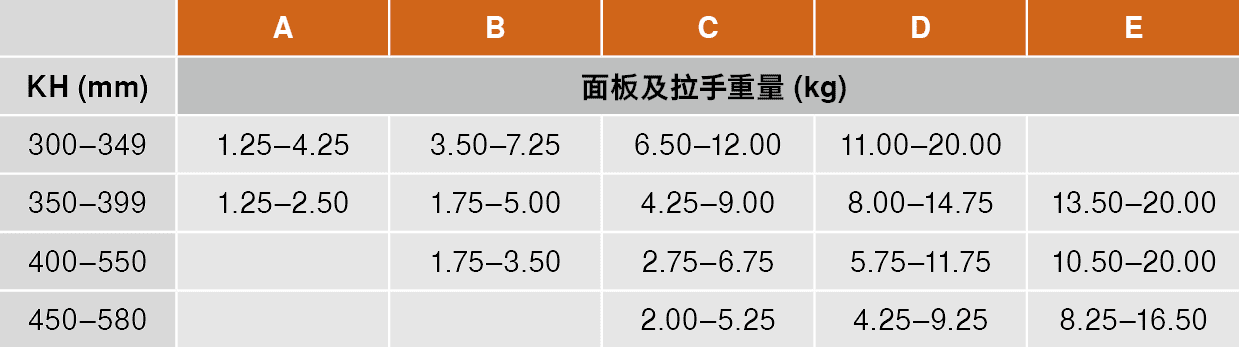

AVENTOS HL

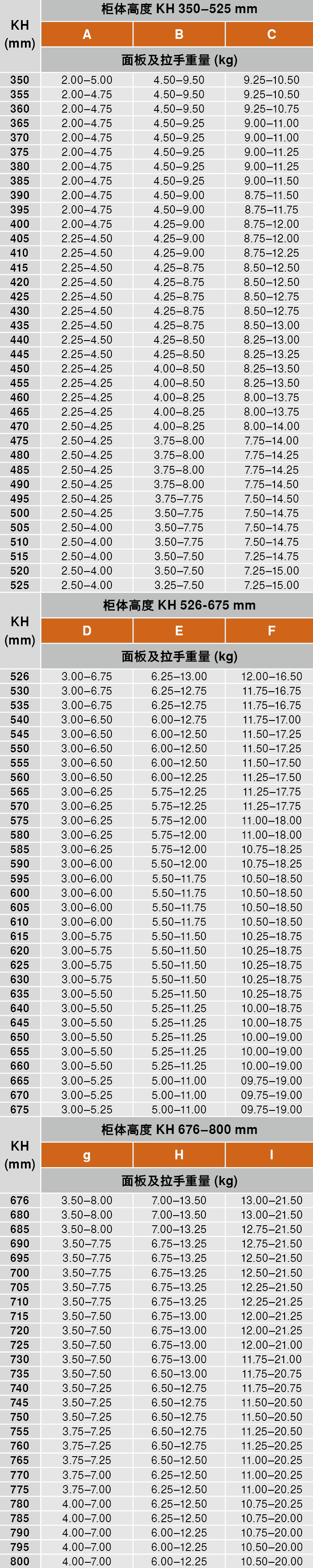

AVENTOS HS
