Marking template for MERIVOBOX

chevron_left Back

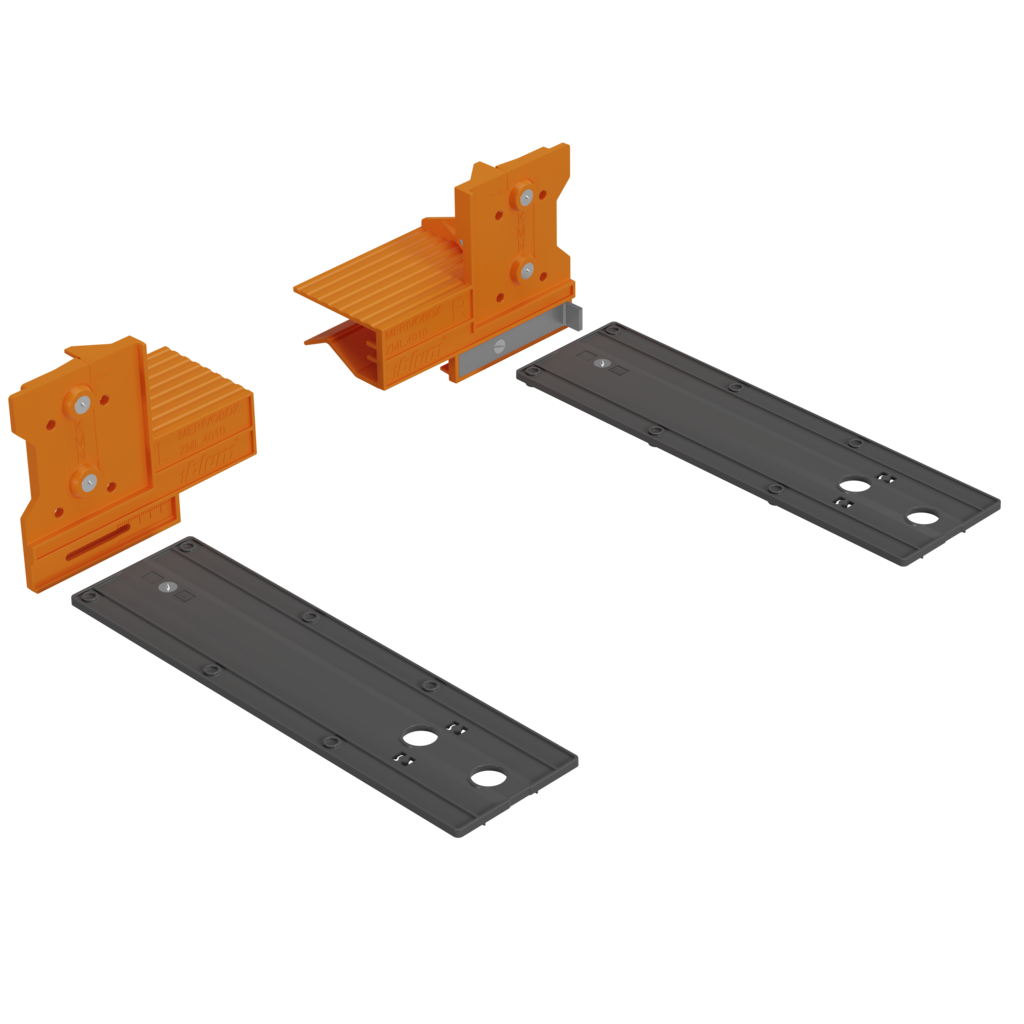

Marking template for MERIVOBOX
Marking template for MERIVOBOX, for Front, for MERIVOBOX, orange/black
Ident no: 01342037
Part no.: ZML.4010 KOE-LE R+LOR/S
Box qty: 1 pc
  • type: marking template

Marking template for MERIVOBOX, for Front, for MERIVOBOX, orange/black

Ident no: 01342037 Part no.: ZML.4010 KOE-LE R+LOR/S Box qty: 1 pc
  • type: marking template
error_outline

Please log in to see prices and availability.
  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

Simple and precise transfer of measurements: templates and tools support the assembly of all Blum products. They have proven to be the very best aids when it comes to day-to-day assembly. They are a perfect combination of high precision and practical value which is greatly appreciated both in workshops and directly on site.
description Technical data expand_more

Technical data

type
marking template
colour/surface
orange/black
material
nylon
scope of delivery
1x Operating instructions, 1x marking template
template suitable for
MERIVOBOX
