MERIVOBOX front fixing bracket bottom

chevron_left Back

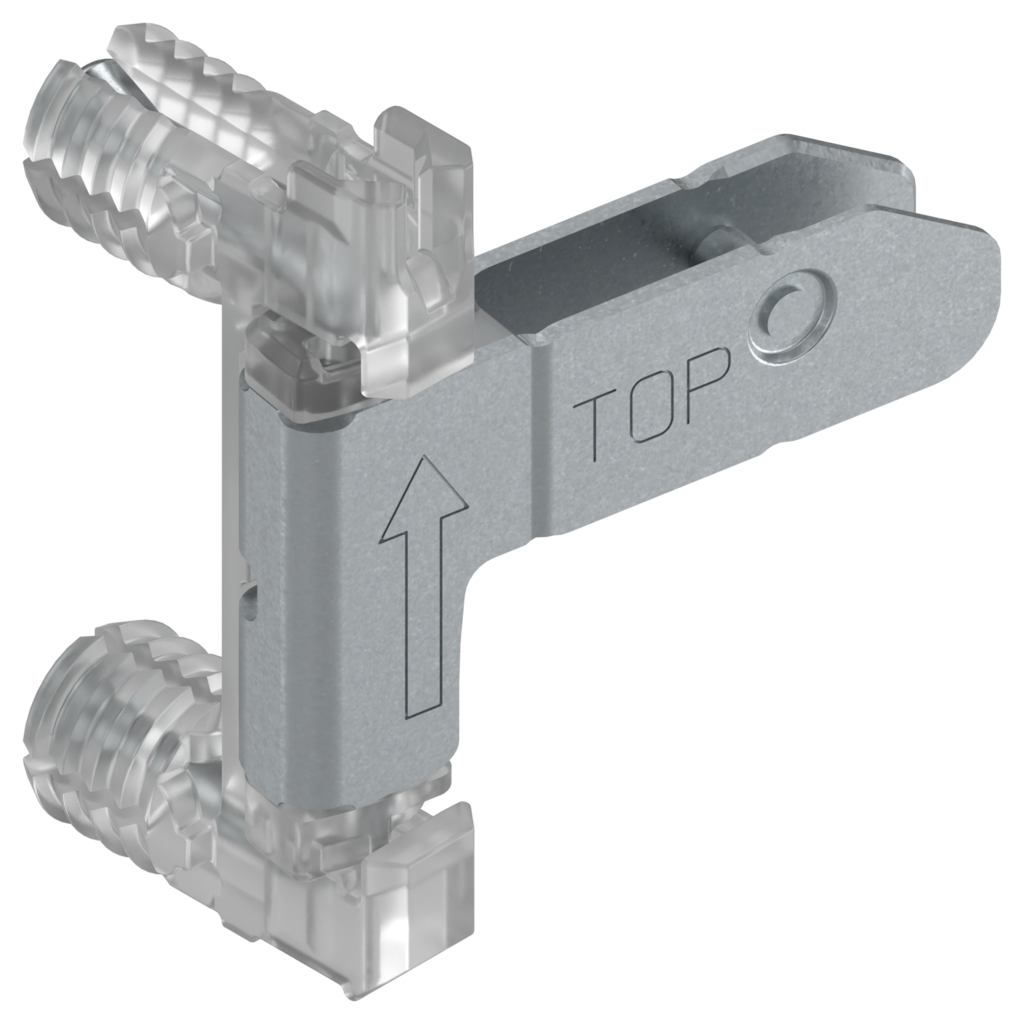

MERIVOBOX front fixing bracket bottom
MERIVOBOX front fixing bracket bottom
Ident no: 08852615
Part no.: ZF4.10I2 FROB V500 ZN
Box qty: 500 pcs
  • Front fixing: tool-free with INSERTA
  • side position: left/right
MERIVOBOX front fixing bracket bottom, tool-free with INSERTA, symmetrical, Zinc plated
Ident no: 08852615 Part no.: ZF4.10I2 FROB V500 ZN Box qty: 500 pcs
  • Front fixing: tool-free with INSERTA
  • side position: left/right
error_outline

Please log in to see prices and availability.

  • description Technical data
  • CAD/CAM data
description Technical data expand_more

Technical data

type
front fixing bracket
box systems
MERIVOBOX
Front fixing
tool-free with INSERTA
height
43.3 mm
width
9.9 mm
