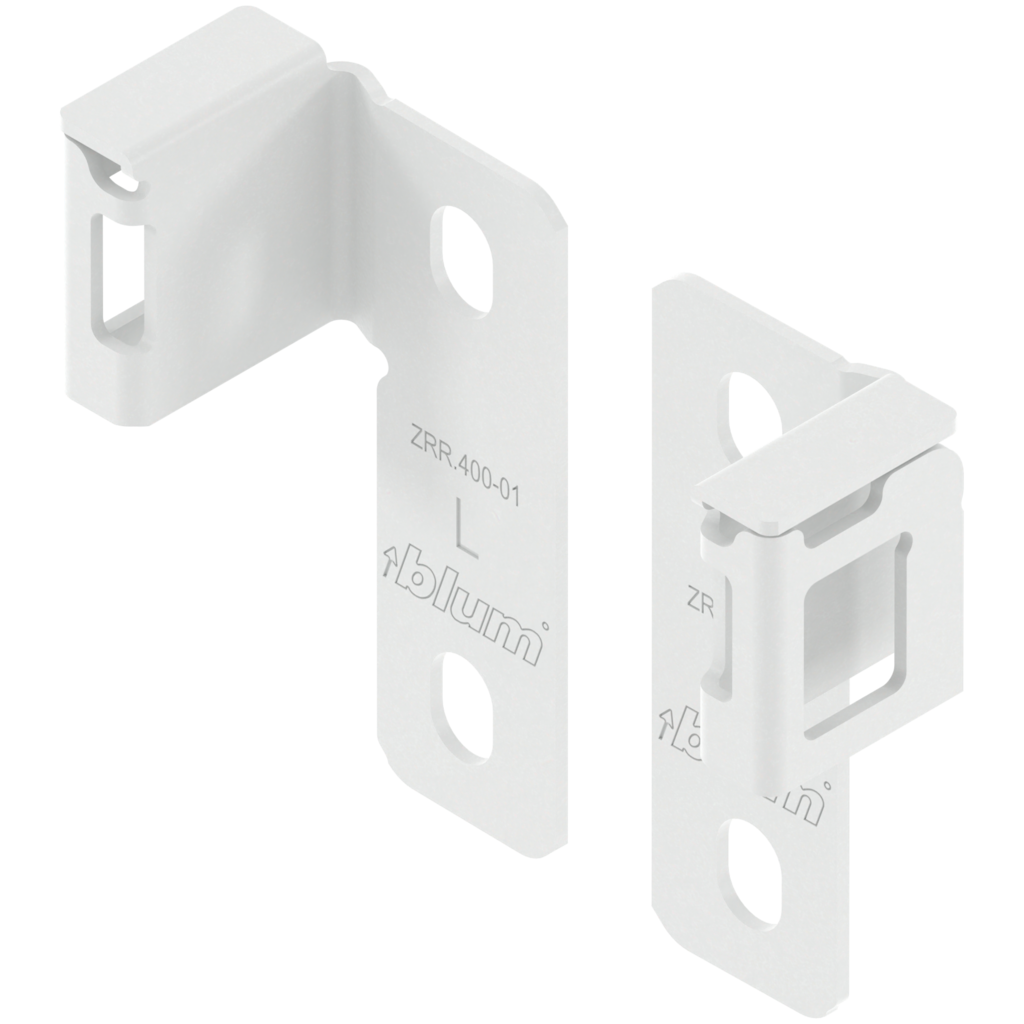

MERIVOBOX gallery fixing
MERIVOBOX gallery fixing
Ident no: 05134053
Part no.: ZRR.4000 REL-H MP SW-M
Box qty: 22 pcs
MERIVOBOX gallery fixing (back), flexible-attachment, non-adjustable gallery, screw-on, right+left, Silk white matt
Ident no: 05134053 Part no.: ZRR.4000 REL-H MP SW-M Box qty: 22 pcs
error_outline

Please log in to see prices and availability.

  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

A gallery fixing can be fitted to the chipboard back at any height above the regular chipboard back fixing, enabling longside gallery rails to be attached above the standard height. The non-adjustable gallery fixing is only suitable for longside gallery rails which are not adjustable lengthways.
description Technical data expand_more

Technical data

type
gallery fixing
for number of galleries
1
height
50.5 mm
material
steel
fixing method
for screwing on
