MERIVOBOX longside gallery rail 500 mm

chevron_left Back

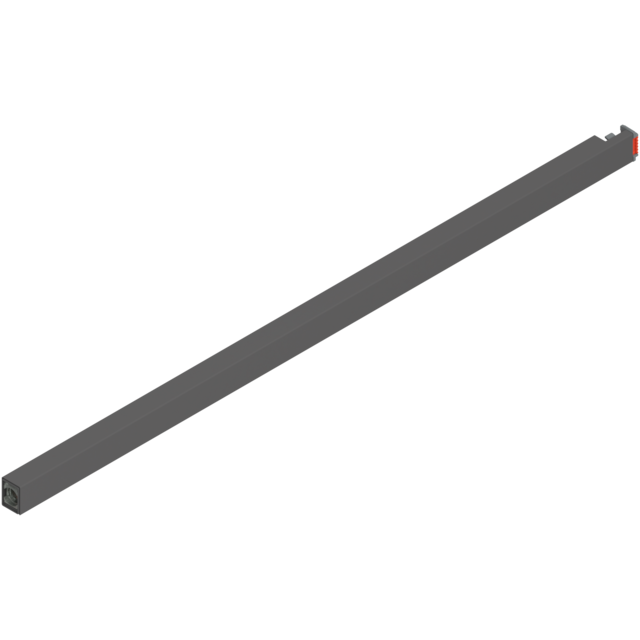

MERIVOBOX longside gallery rail 500 mm
MERIVOBOX longside gallery rail 500 mm
Ident no: 05734068
Part no.: ZR4.500RS.EREL LAE R OG-M
Box qty: 92 pcs
  • shape: rectangular
  • side position: right
  • nominal length: 500 mm
  • colour/surface: orion grey matt
MERIVOBOX longside gallery rail, NL=500 mm, right, Orion grey matt
Ident no: 05734068 Part no.: ZR4.500RS.EREL LAE R OG-M Box qty: 92 pcs
  • shape: rectangular
  • side position: right
  • nominal length: 500 mm
  • colour/surface: orion grey matt
error_outline

Please log in to see prices and availability.

  • info Product information
  • description Technical data
  • CAD/CAM data
info Product information expand_more

Product information

The longside gallery rail is fitted above the drawer side and provides stability to the pull-out. Thanks to its smooth transition to the back panel, it creates a pull-out that appears virtually seamless and is a popular design option.
description Technical data expand_more

Technical data

type
longside gallery rail
shape
Rectangular
side position
right
nominal length
500 mm
height
20 mm
