MERIVOBOX TIP-ON BLUMOTION unit 40 kg

chevron_left Back
MERIVOBOX TIP-ON BLUMOTION unit 40 kg MERIVOBOX TIP-ON BLUMOTION unit 40 kg
MERIVOBOX TIP-ON BLUMOTION unit 40 kg
MERIVOBOX TIP-ON BLUMOTION unit 40 kg
MERIVOBOX TIP-ON BLUMOTION unit 40 kg
Ident no: 05586120
Part no.: T60H4540 TOB R+LV1R737
Box qty: 1 pc
  • type of unit: type L3
  • for total weight of the pull-out: 15 - 40 kg
  • suitable for runner with dynamic carrying capacity: 40 kg
  • suitable for nominal length range: 350 - 600 mm
  • side position: left/right
  • material: nylon/steel

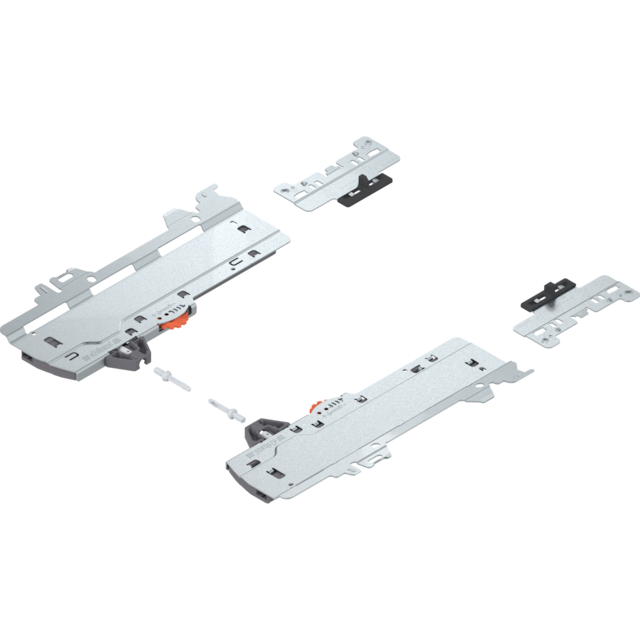

Set (TIP-ON BLUMOTION unit + latch + Adapter), for MERIVOBOX, Type L3, NL=350-600 mm, Total weight of the pull-out=15–40 kg, right+left, R7037 dust grey
Ident no: 05586120 Part no.: T60H4540 TOB R+LV1R737 Box qty: 1 pc
  • type of unit: type L3
  • for total weight of the pull-out: 15 - 40 kg
  • suitable for runner with dynamic carrying capacity: 40 kg
  • suitable for nominal length range: 350 - 600 mm
  • side position: left/right
  • material: nylon/steel
error_outline

Please log in to see prices and availability.

  • description Technical data
  • CAD/CAM data
  • handyman Assembly instructions
description Technical data expand_more

Technical data

type
TIP-ON BLUMOTION unit
type of unit
type L3
for total weight of the pull-out
15 - 40 kg
suitable for runner with dynamic carrying capacity
40 kg
dynamic carrying capacity
40
